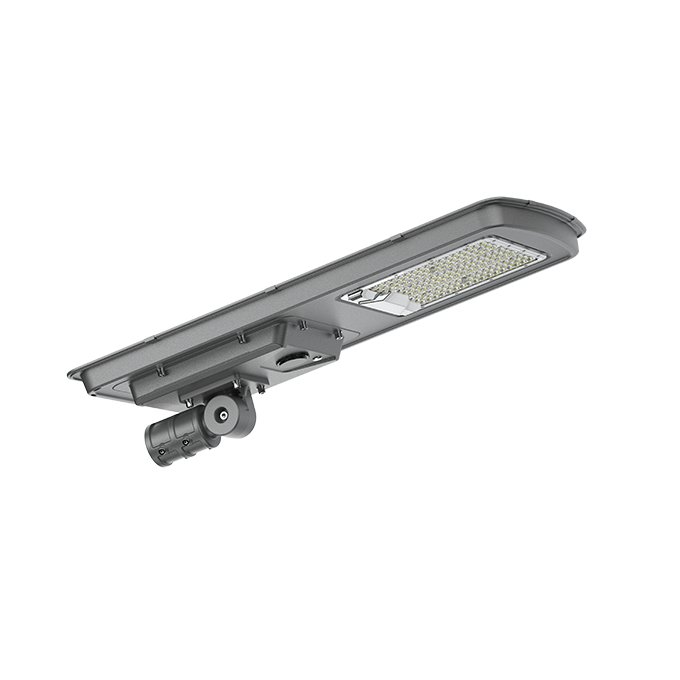

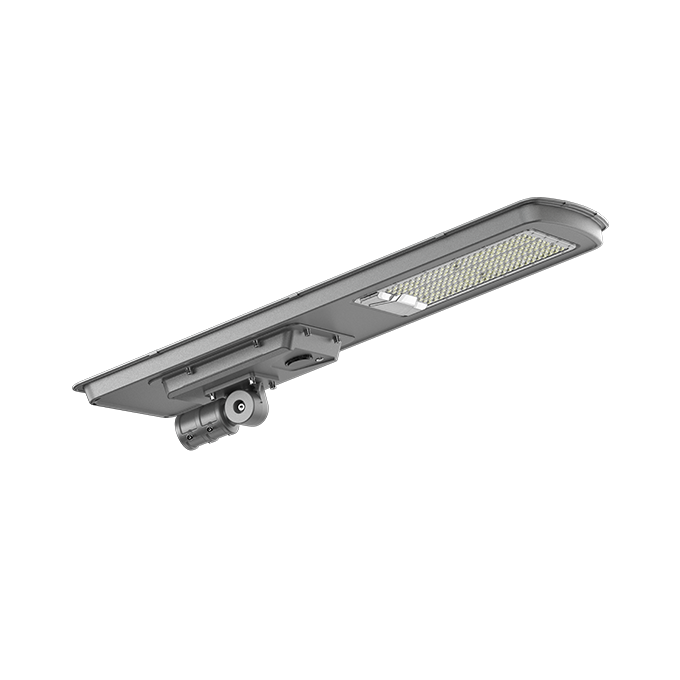

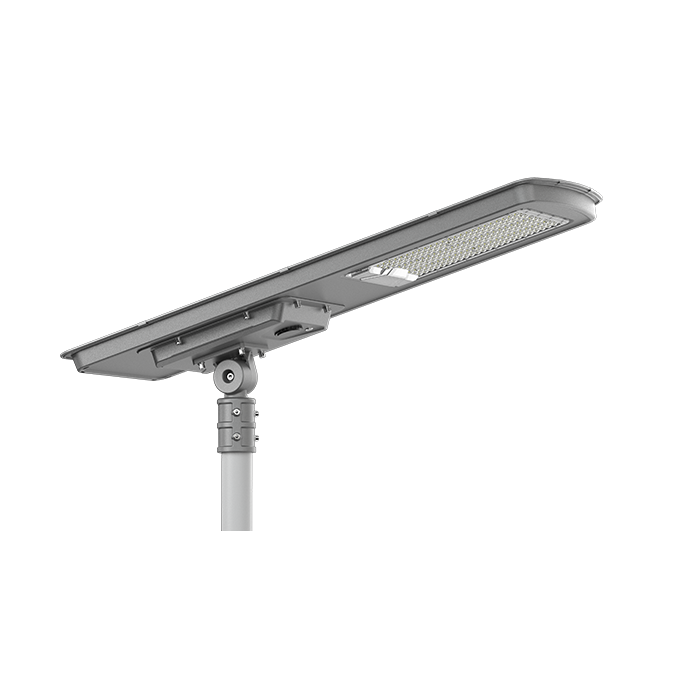

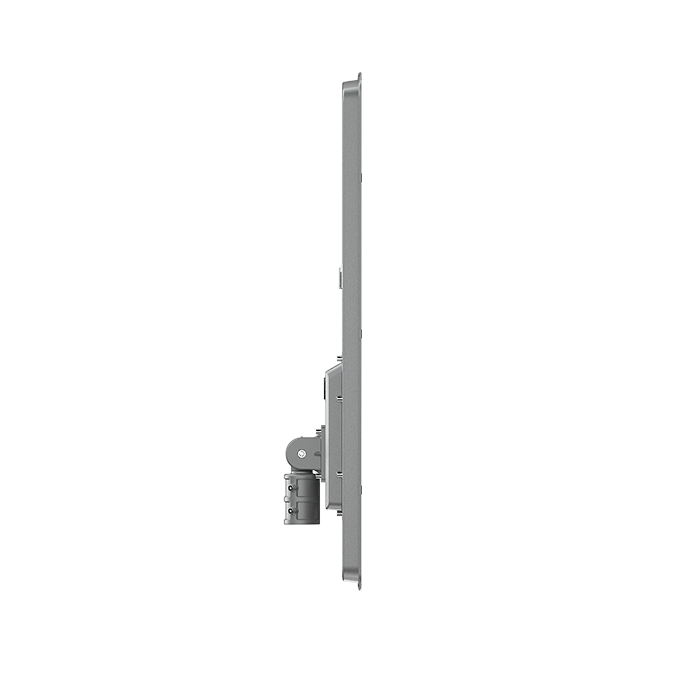

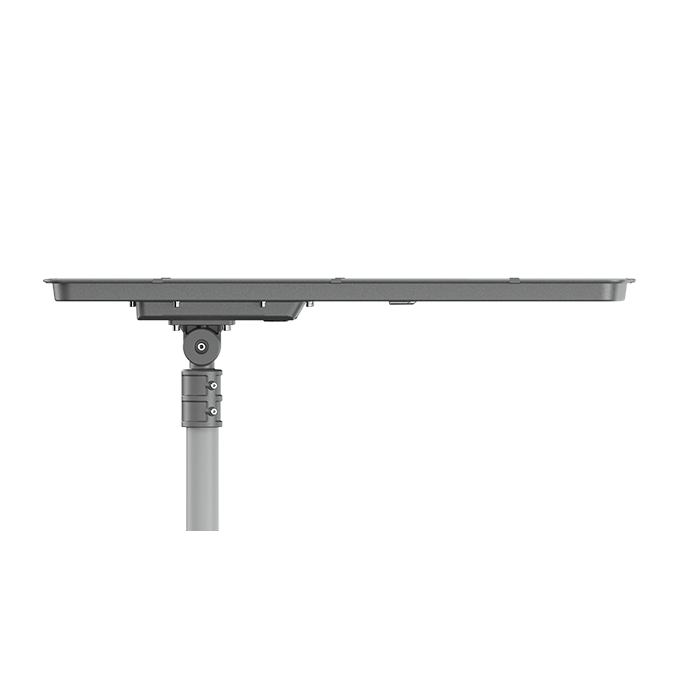

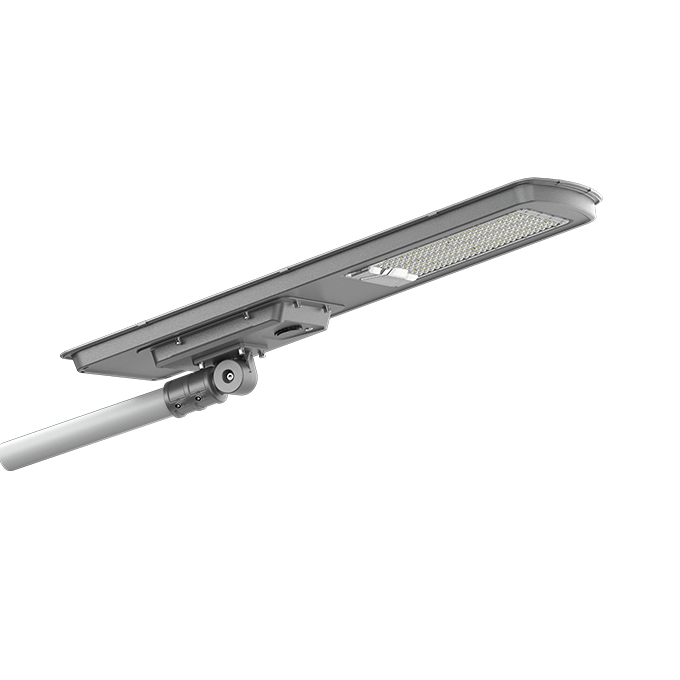

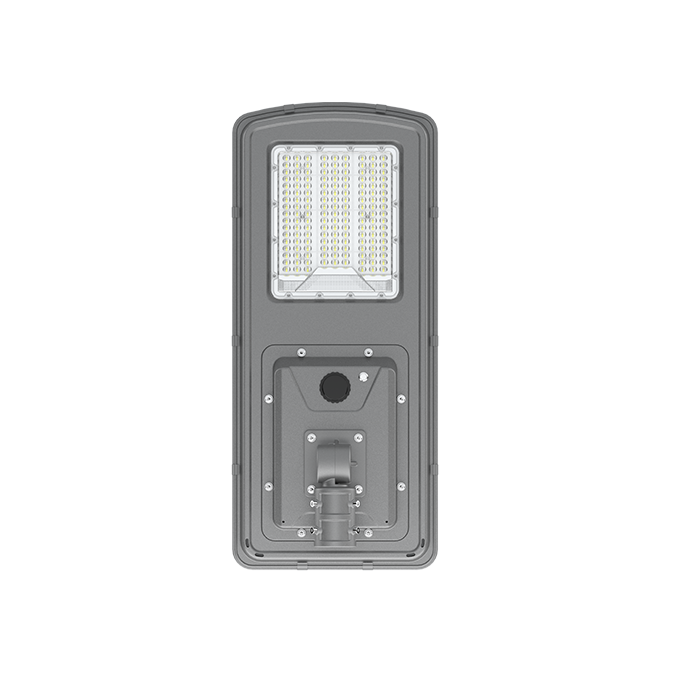

Essential II
Features

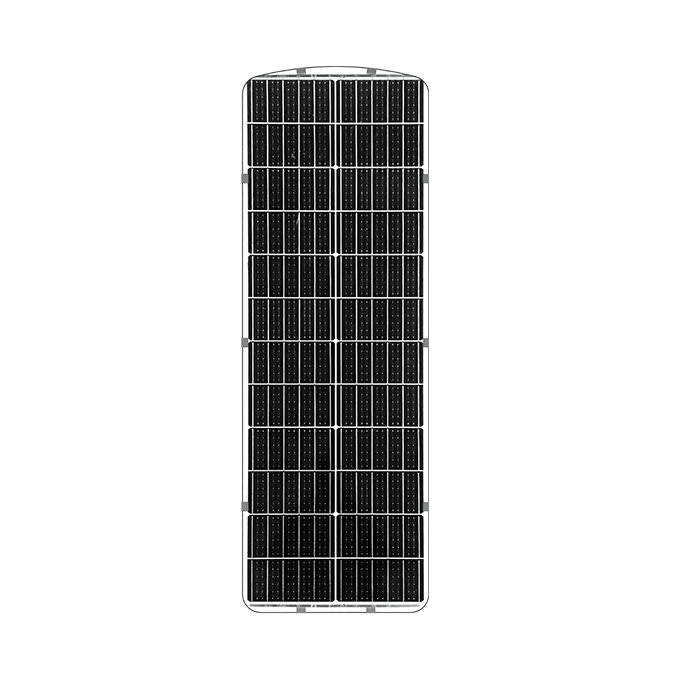

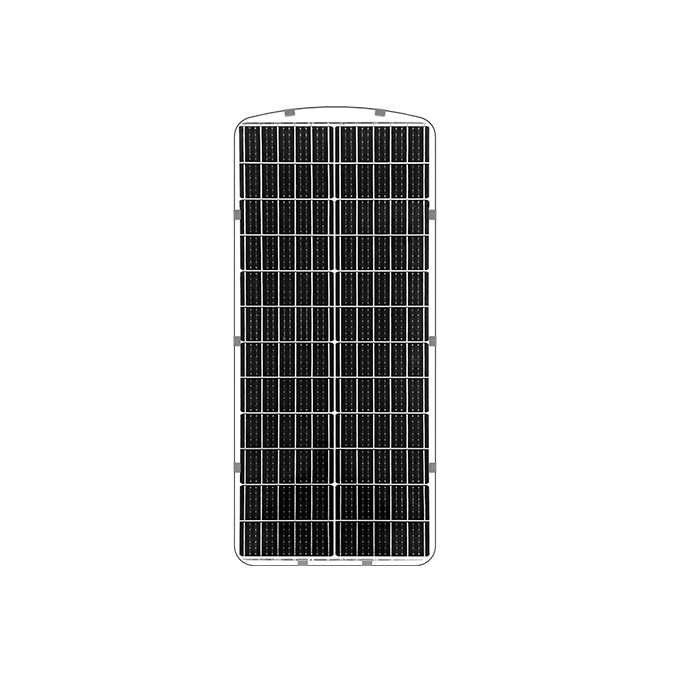

High-efficiency monocrystalline PV modules
LiFePO₄ battery, safe and stable
Protection rating: IP65
High luminous efficacy: 160 lm/W
Application scenarios
Branch Roads
Rural Roads
Residential Roads
Park Walkways
Scenic Roads
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-SLEP-1-23 | UNI-SLEP-1-30 | UNI-SLEP-2-45 | |
| Luminous Flux (lm) | 4500 | 6000 | 9000 | |
| System Voltage | 3.2V | |||
| Polycrystalline Solar Panel | 60W/5V | 60W/5V | 80W/5V | |
| LiFePO₄ Battery | 3.2V/75AH | 3.2V/105AH | 3.2V/135AH | |
| Charge Time (H) | 6 | 8 | 8 | |
| Full Power Working Time (H) | 10.4 | 11 | 9.5 | |
| Overcast Days | 1 day light (sunshine 4.5 KWH/m²/day) | |||
| Charge Temperature | 0℃ ~ 50 ℃ | |||
| Discharge Temperature | -10℃ ~ 55 ℃ | |||
| Storage Temperature | 0℃~ 45℃ | |||
| Warranty | 3 years | |||
| Housing Materials | SPCC | |||
| IP | IP65 | |||
| Insulation Class | Class Ⅲ | |||
| Spigot Diameter (mm) | Φ60 Max | |||
| Installation Height (m) | 5~6 | 6~8 | ||
Electrical
| Product Model | UNI-SLEO-02000 | UNI-SLEO-03000 | UNI-SLEO-04500 |
| System Power (W) | 12.5 | 19 | 30 |
| Charge Time (H) | 3~5 | 3~5 | 3~5 |
| Full Power Working Time (H) | 5 | 5 | 5 |
| LED Life Time | >50,000 Hrs（L70@Ta=25℃） | ||
| Default Lighting Mode* | 1H*100%+2H*60%+2H*30%+7H*15% | ||
Optical
| Product Model | UNI-SLEO-02000 | UNI-SLEO-03000 | UNI-SLEO-04500 |
| System Power (W) | 12.5 | 19 | 30 |
| CCT | 3000K/4000K/5000K/5700K/6500K | ||
| SDCM | ≤5 | ||
| CRI | Ra≥70 | ||
| Light Distribution | Batwing Light Distribution | ||
Light Distribution
Dementions
| Product Model | UNI-SLEP-1-23 | UNI-SLEP-1-30 | UNI-SLEP-2-45 | |
| Luminaire Dimension | Dimension (mm) | 400*910*78 | 400*1168*78 | |
| Packing Dimension (mm) | 1155*44*145 | 1370*44*145 | ||
| Net Weight (±1kg) | 10.0Kg | 10.6Kg | 12.9KG | |
| Gross Weight (±1kg) | 11.5Kg | 12.1Kg | 14.5KG | |
Product specifications are for reference only and subject to the official contract documents.
