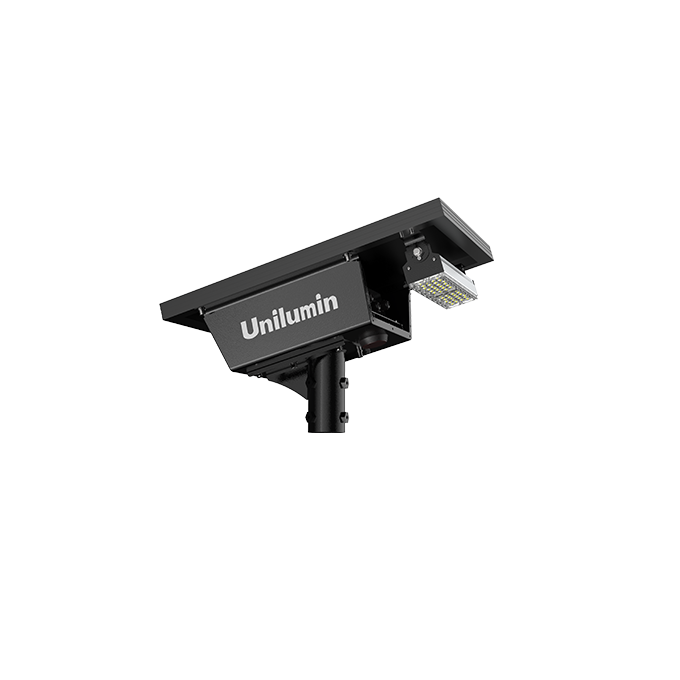

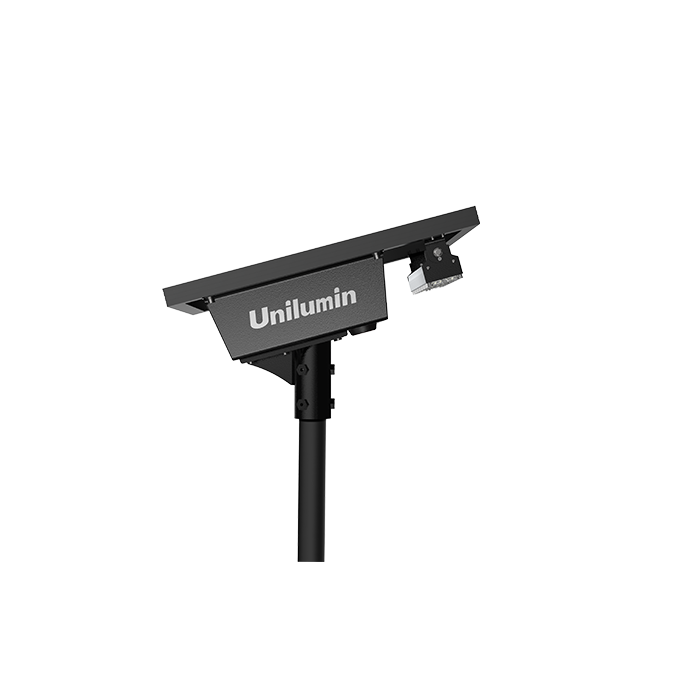

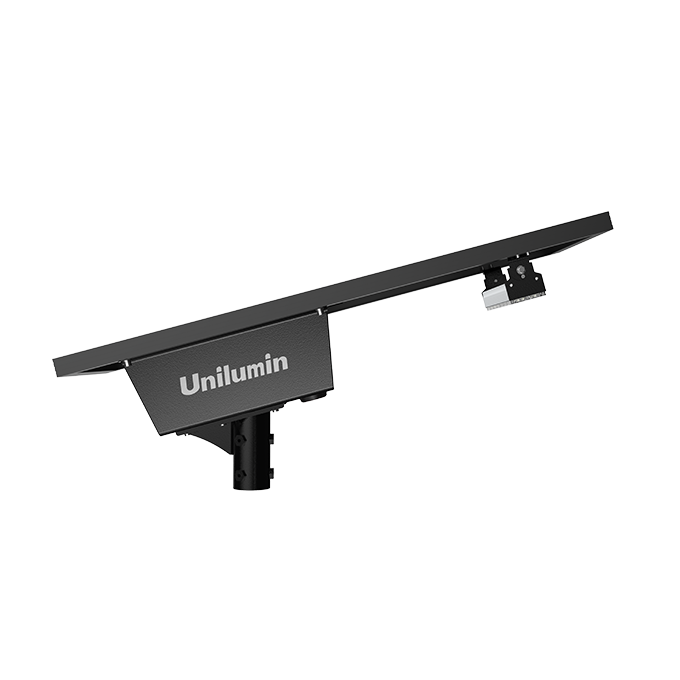

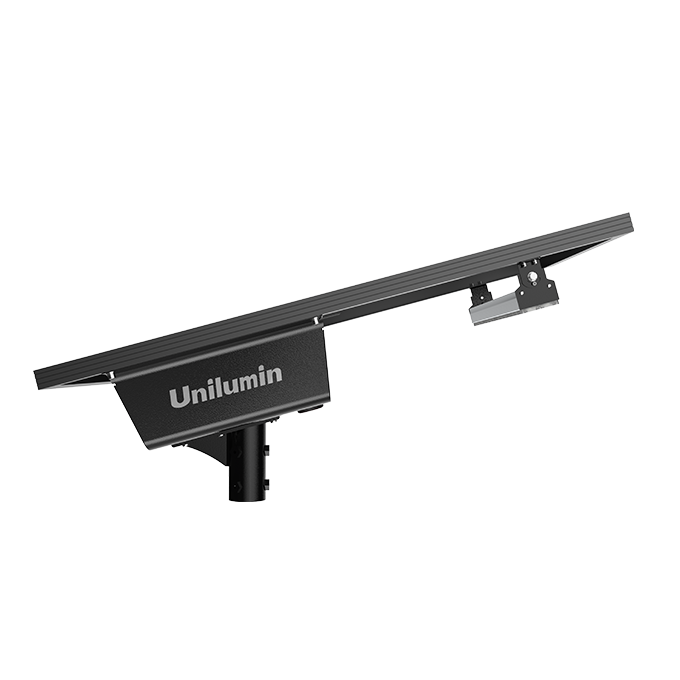

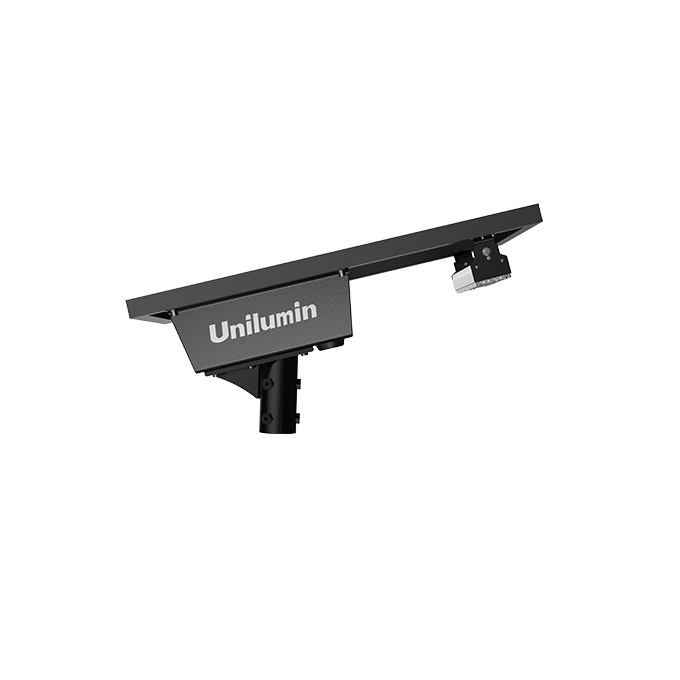

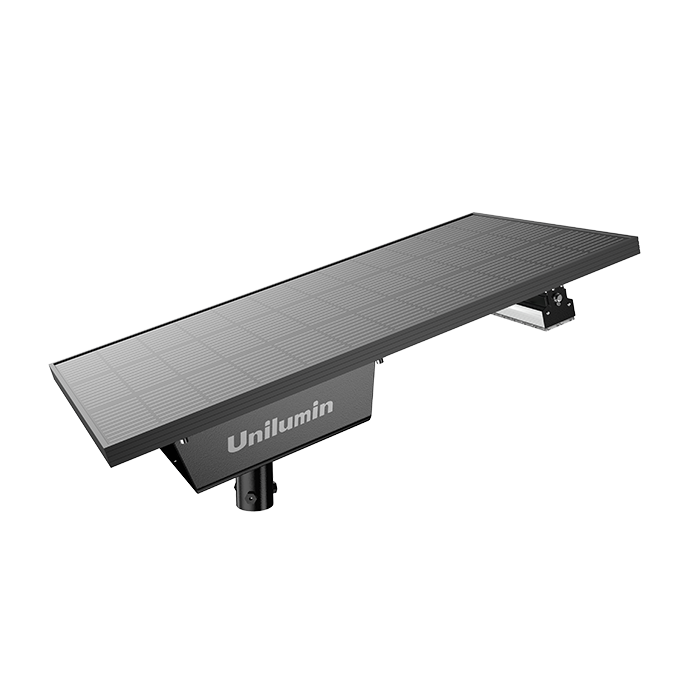

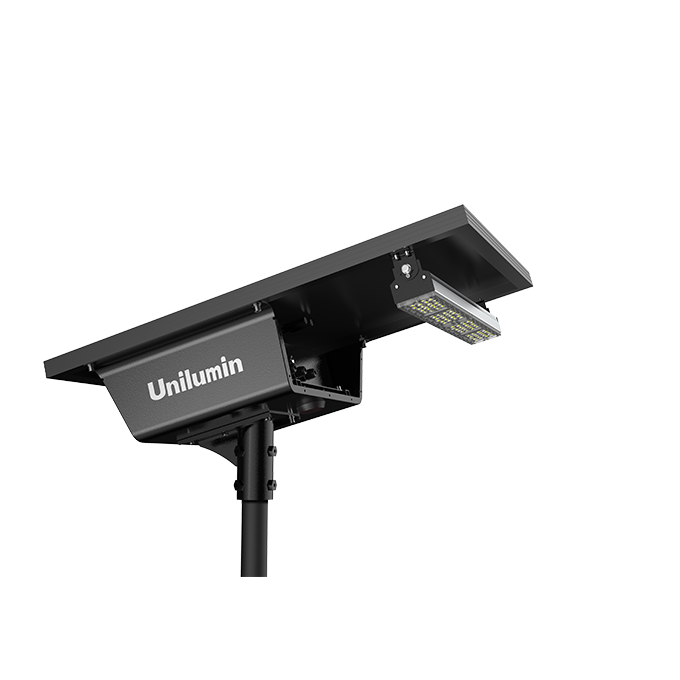

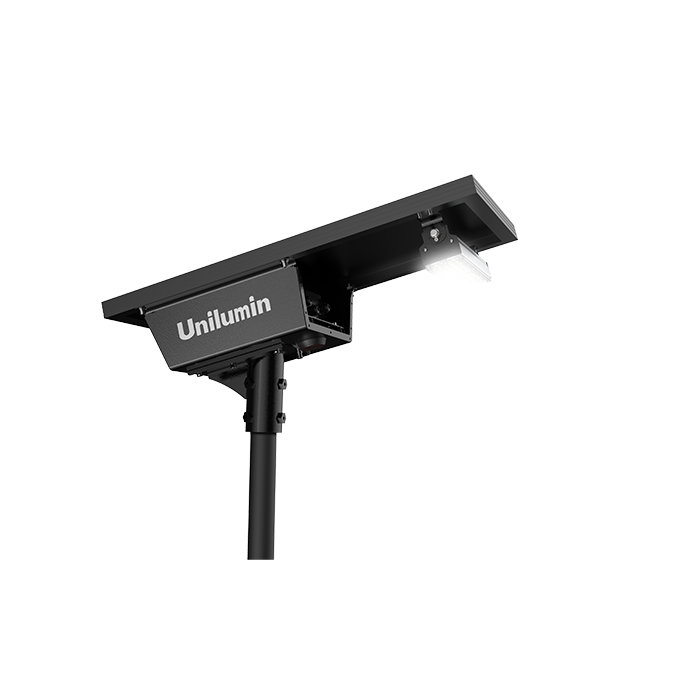

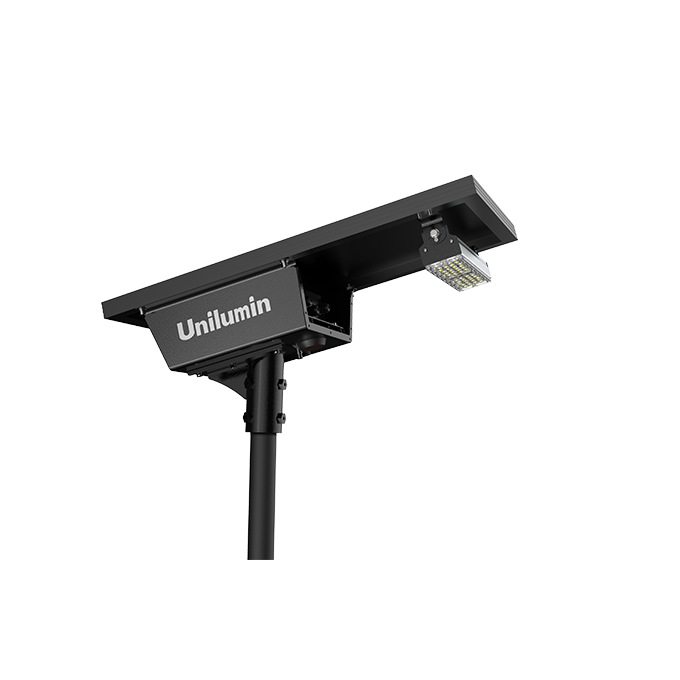

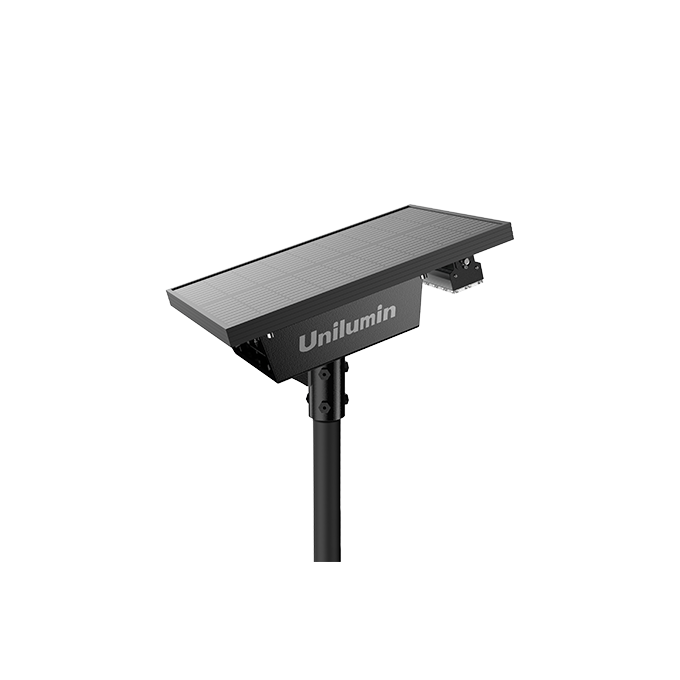

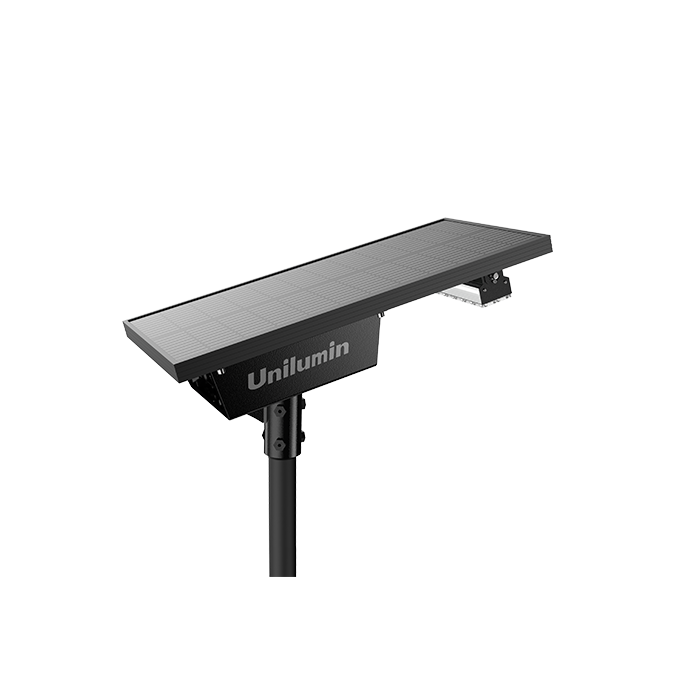

ELite Ⅲ
Features
Power range: 20W - 100W
Max luminaire efficacy: 210lm/W, Max lumen output:21000lm

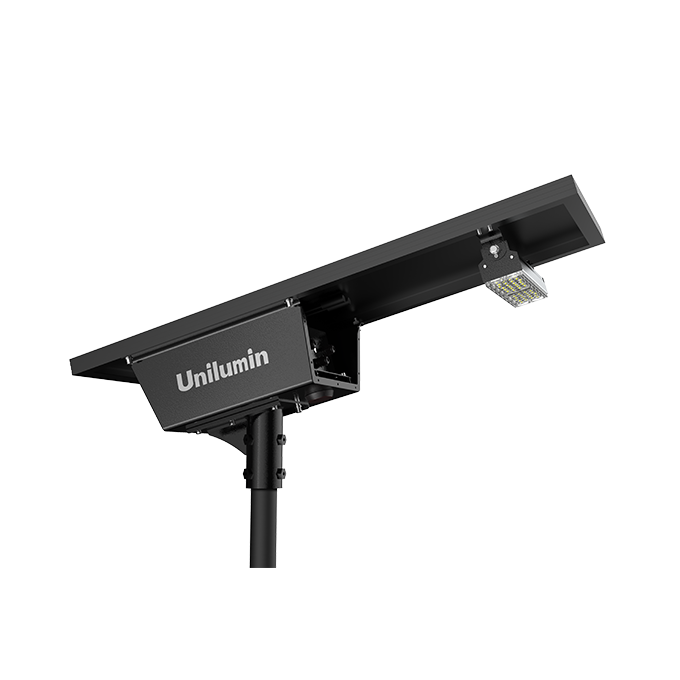

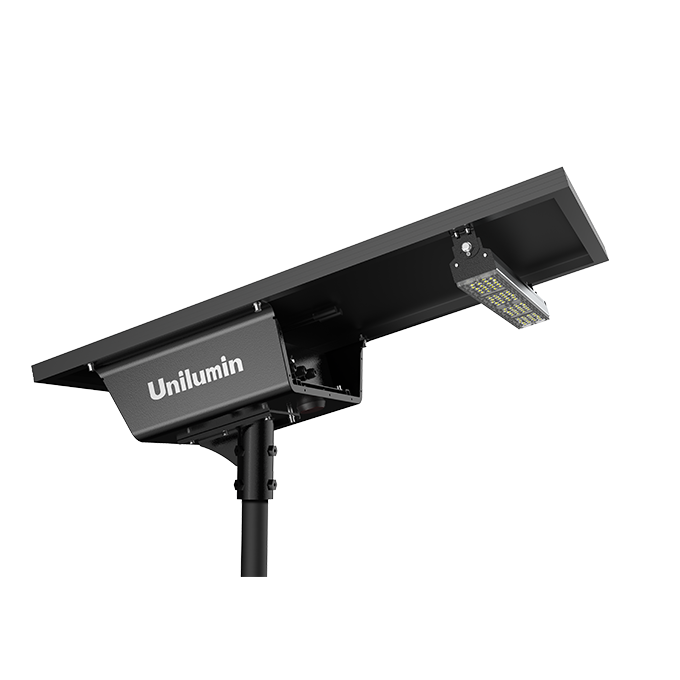

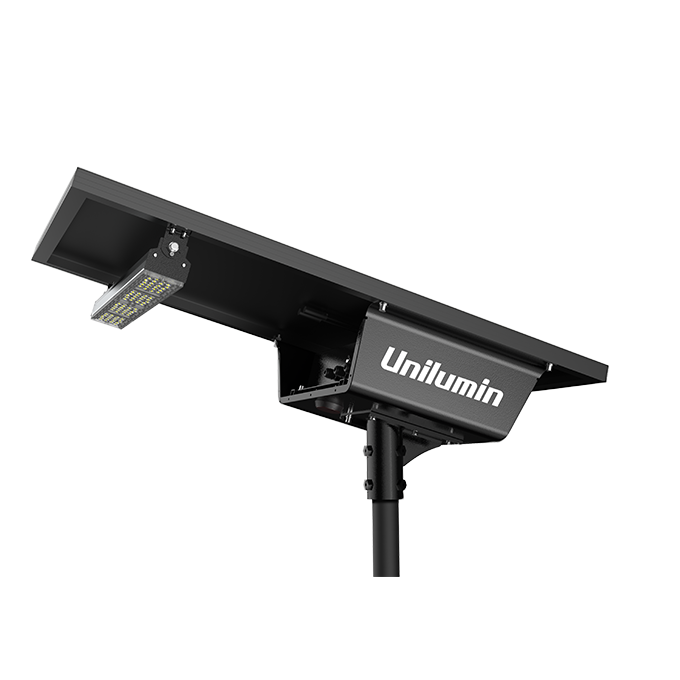

Flexible angle adjustment: adjustable LED module tilting angle ±60°

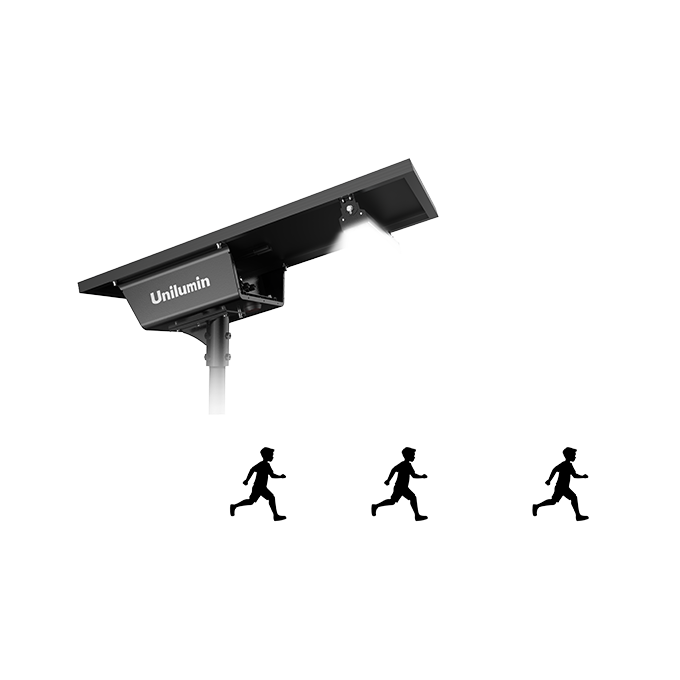

MPPT solar charging controller ensure maxiumum charging efficiency, motion sensor or IOT compitiable allow for smart working and remote monitoring and control
Long service lifetime LiFePO4 battery: over 5 years

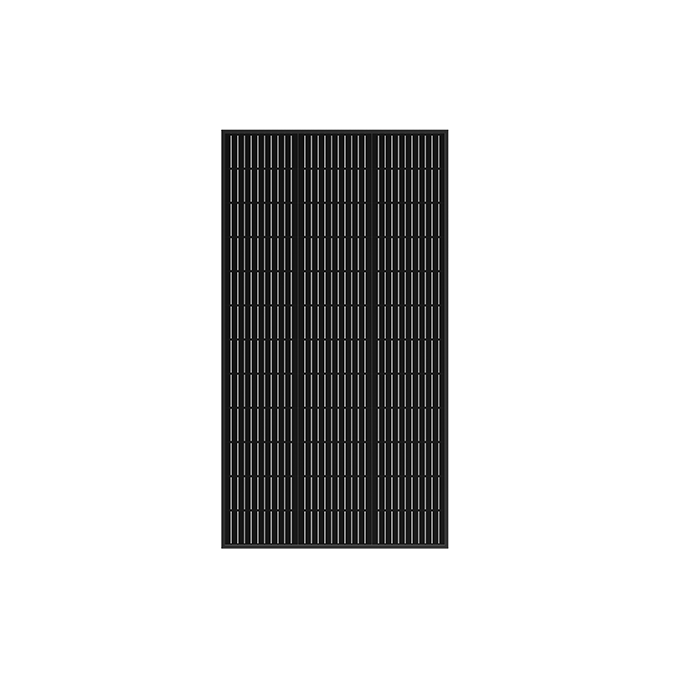

Self-cleaning/anti-dust solar panel coating

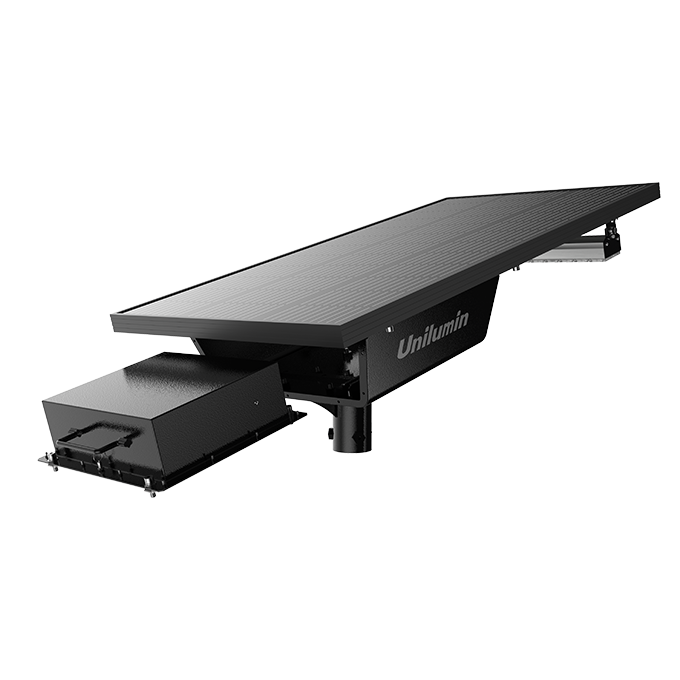

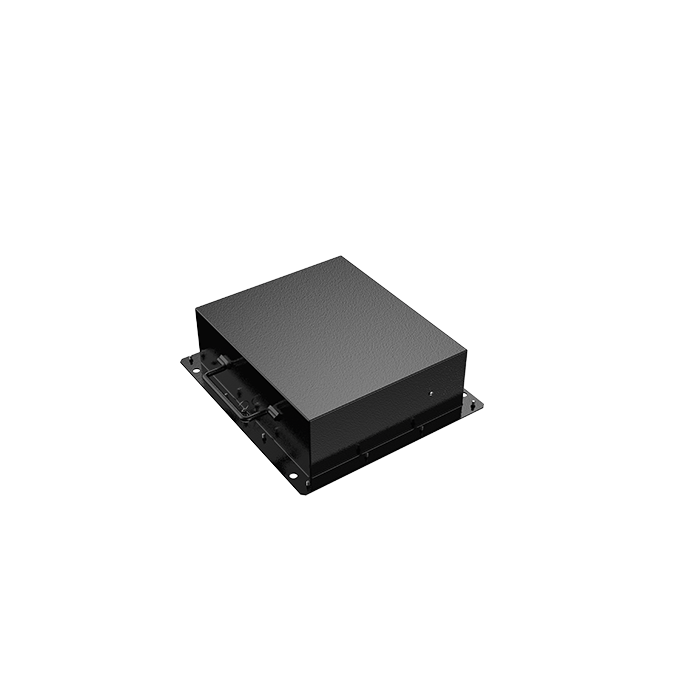

Drawer type battery box, easy for maintenance
Application scenarios
Secondary Roads
Branch Roads
Pedestrian Paths
Residential Communities
Parks & Scenic Areas
Rural Roads
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-SL05-1-20 | UNI-SL05-2-30 | UNI-SL05-3-40 | UNI-SL05-4-50 | UNI-SL05-5-60 | UNI-SL05-6-80 | UNI-SL05-7-100 |
| System Power (W) |
20W | 30W | 40W | 50W | 60W | 80W | 100W |
| System Voltage | 12V | 24V | |||||
| Monocrystalline Solar Panel |
40W/18V | 40W/18V | 60W/18V | 60W/18V | 80W/18V | 100W/18V | 120W/36V |
| LiFePO₄Battery | 12.8V/15AH | 12.8V/15AH | 12.8V/30AH | 12.8V/30AH | 12.8V/45AH | 12.8V/60AH | 25.6V/30AH |
| Luminaire Efficacy (Tq=25℃) |
210lm/@4000K | ||||||
| Luminous Flux (Im) |
4200 | 6300 | 8400 | 10500 | 12600 | 16800 | 21000 |
| Overcast Days | 1-2 Overcast Days+Intelligent battery life. (Reference sunshine hours 5 KWH/m²/day) | ||||||
| Light Distribution | Type IIS | ||||||
| Charge Temperature |
0℃~50℃ | ||||||
| Discharge Temperature |
-10℃~55℃ | ||||||
| Storage Temperature |
0℃~45℃ | ||||||
| Warranty | 3 years | ||||||
Housing Materials |
SPCC Housing+Extruded Aluminum Frame+PC | ||||||
| Finishing | Black RAL9004 | ||||||
| IP/IK | IP66/IK08(Solar panel:IK07) | ||||||
| Insulation Class | Class Ⅲ | ||||||
| Spigot Diameter (mm) |
Φ60 | ||||||
Installation Height(m) |
4~6 | 4~6 | 4~6 | 4~6 | 5~7 | 6~8 | 6~8 |
Wind-Resistance (km/h) |
130 | ||||||
Electrical
| Product Model | UNI-SL05-1-20 | UNI-SL05-2-30 | UNI-SL05-3-40 | UNI-SL05-4-50 | UNI-SL05-5-60 | UNI-SL05-6-80 | UNI-SL05-7-100 |
| System Power (W) |
20W | 30W | 40W | 50W | 60W | 80W | 100W |
| Charge Time(H) | 6 | 6 | 8 | 7 | 8 | 8.5 | 7 |
| Full Power Working Time(H) |
9.6 | 6.4 | 9.6 | 7.7 | 9.6 | 9.6 | 7.7 |
| System Power (W) |
20W | 30W | 40W | 50W | 60W | 80W | 100W |
| Sensor Distance | IR sensor:Height =6m,Width =7m Microwave sensor:Height =8m,Width =10m Photo sensor+Timer Dimming |
||||||
| Hybrid | Battery | ||||||
Optical
| Product Model | UNI-SL05-1-20 | UNI-SL05-2-30 | UNI-SL05-3-40 | UNI-SL05-4-50 | UNI-SL05-5-60 | UNI-SL05-6-80 | UNI-SL05-7-100 |
| System Power (W) |
20W | 30W | 40W | 50W | 60W | 80W | 100W |
| CCT | 4000K(3000K/4000K/5000K/6500K) | ||||||
| CRI | Ra>70 | ||||||
| Light Distribution | Type IIS | ||||||

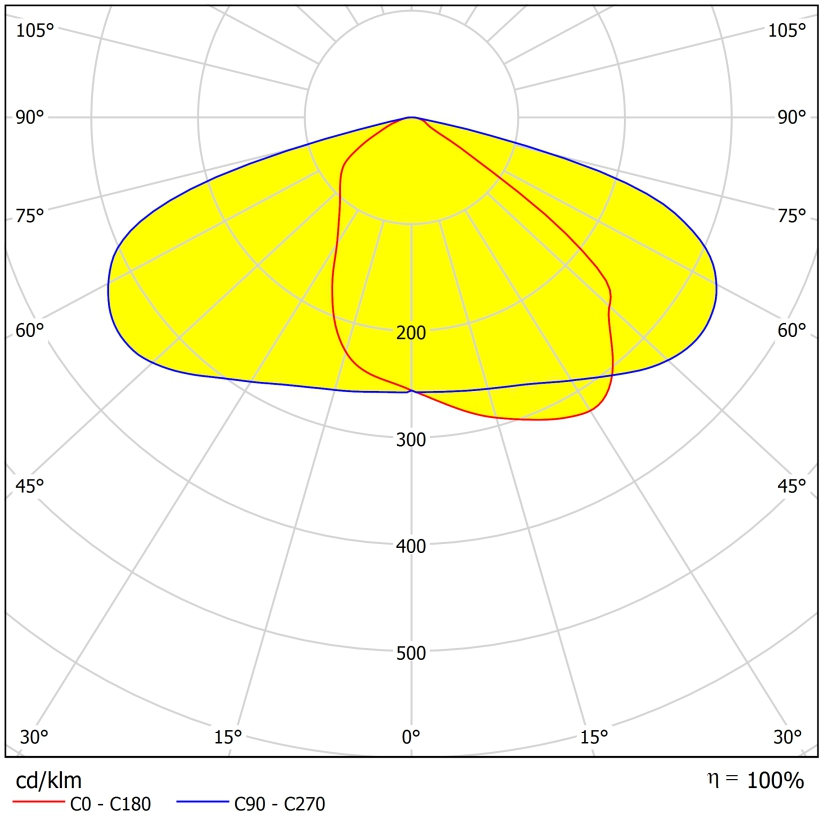

Light Distribution
Type Ⅱ(UNI-838-10)
Dementions
| Product Model | UNI-SL05-1-20 | UNI-SL05-2-30 | UNI-SL05-3-40 | UNI-SL05-4-50 | UNI-SL05-5-60 | UNI-SL05-6-80 | UNI-SL05-7-100 |
| System Power (W) |
20W | 30W | 40W | 50W | 60W | 80W | 100W |
| Luminaire Dimension(mm) |
600*400*325 | 600*400*325 | 786*400*325 | 786*400*325 | 1065*400*355 | 880*586*355 | 1080*586*355 |
Las especificaciones del producto son solo de referencia y están sujetas a los documentos del contrato oficial.
