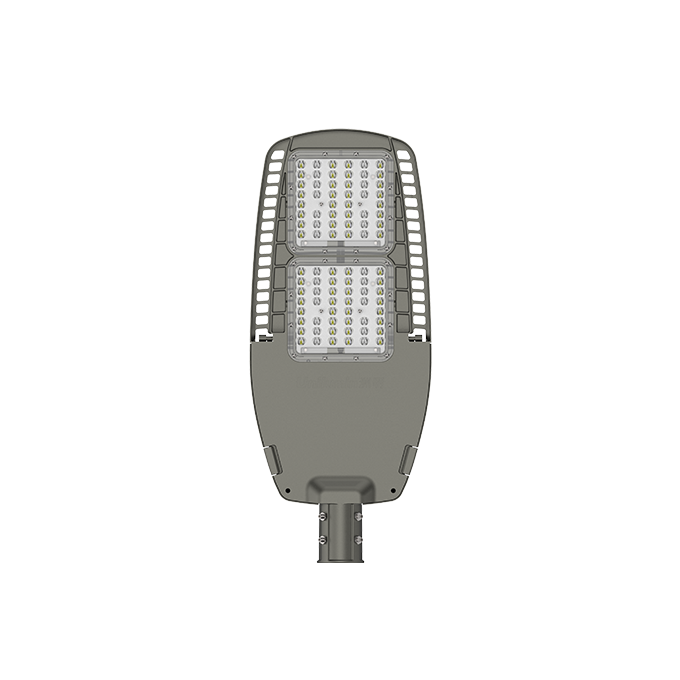

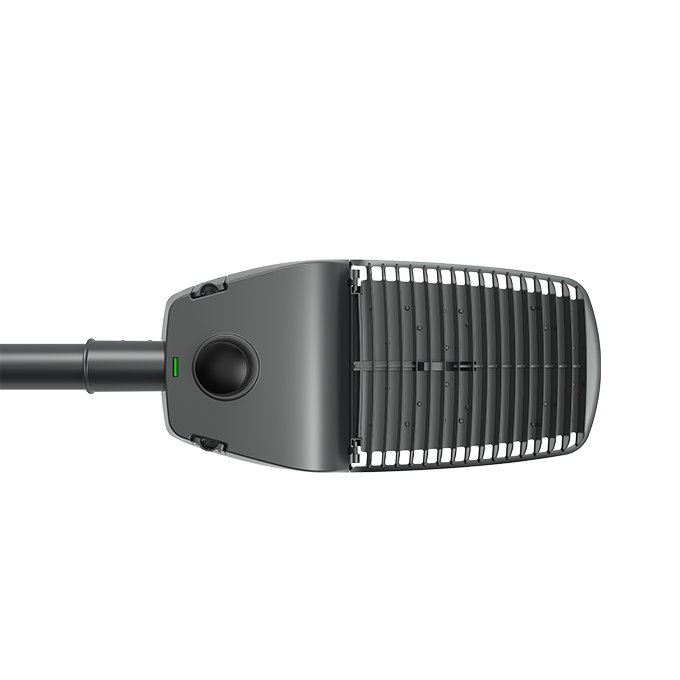

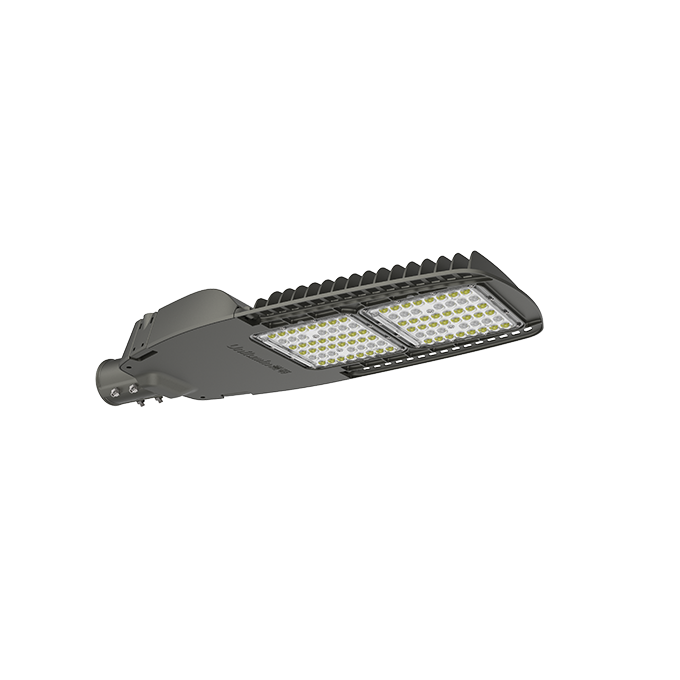

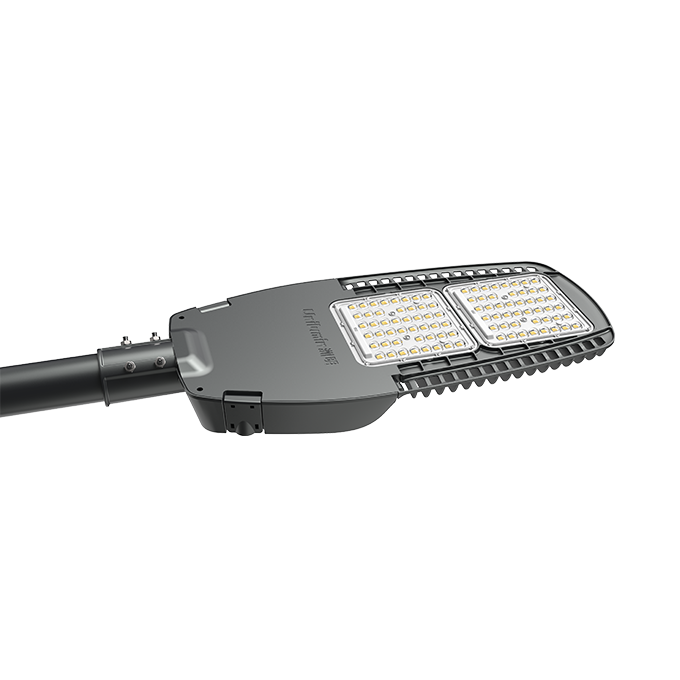

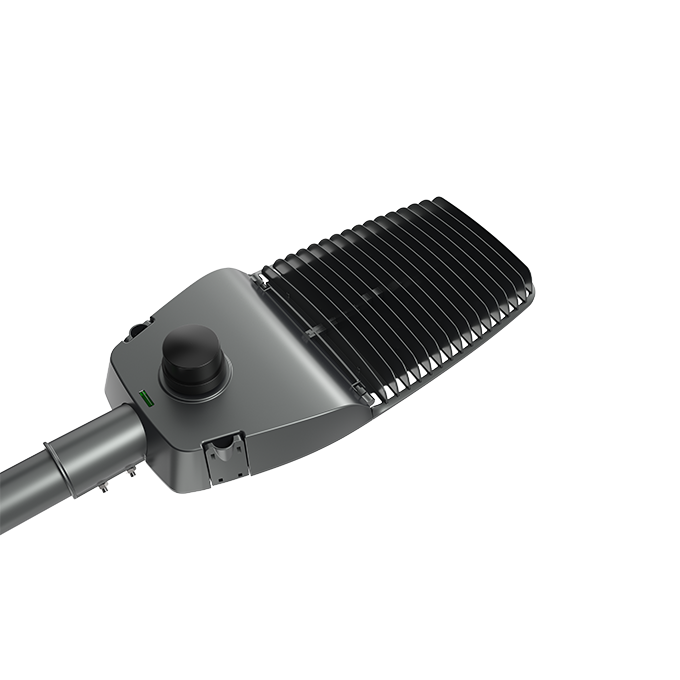

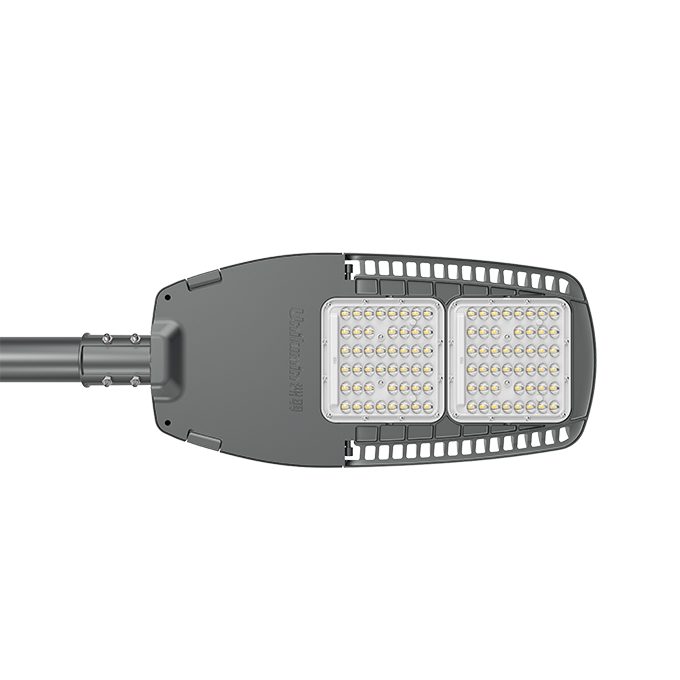

Napro
Features
Sleek streamlined design with integrated die-casting

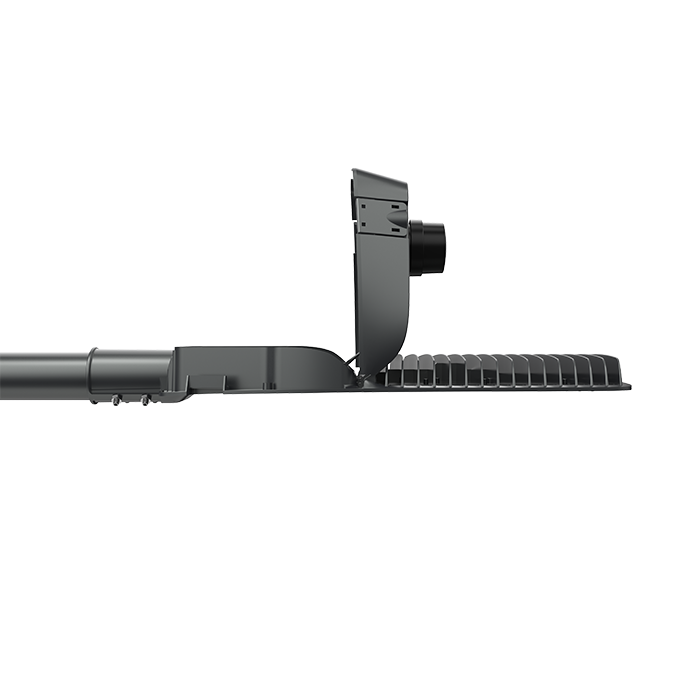

Tool-free top-opening design for easy maintenance
High structural strength, wind resistance up to Level 17
Power range: 40W–250W
High performance, up to 80% energy savings
Wide voltage range: AC100–277V
Full-structure waterproof: IP66, IK08
Application scenarios
Highways
Arterial
Secondary
Branch roads
Major vehicle lanes
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-STD2-2 | UNI-STD2-3 | UNI-STD2-1 | UNI-STD2-4 |
| Power (W) | 10W-60W | 61W-100W | 101W-150W | 151W-250W |
| Working Temp | - 40 ℃ ～55 ℃ | |||
| Working Humidity | 10 % ～ 90 % RH | |||
| Storage Temp | - 40 ℃ ～ 55 ℃ | |||
| Housing Materials | Die-casting Aluminum Alloy | |||
| IP Grade | IP66 | |||
| IK Grade | IK09 | |||
| Life Span (Hrs) | 100,000 | |||
Electrical
| Product Model | UNI-STD2-2 | UNI-STD2-3 | UNI-STD2-1 | UNI-STD2-4 |
| Power (W) | 10W-60W | 61W-100W | 101W-150W | 151W-250W |
| Power Factor | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
| Input Voltage | AC100-277V 50/60Hz | |||
| Driver | Moso/Sosen/Inventronics/Philips | |||
Optical
| Product Model | UNI-STD2-2 | UNI-STD2-3 | UNI-STD2-1 | UNI-STD2-4 |
| Power (W) | 10W-60W | 61W-100W | 101W-150W | 151W-250W |
| LED | 5050/3030 | |||
| CCT（K） | 2200K-6500K, 2200K-3000K comply with DarkSky standard | |||
Light Distribution
Type ll Short (Optics 695)
Type lll Medium (Optics 726)
Type ll Short (Optics 733)
Type ll Medium (Optics 907)
Dementions
| Product Model | UNI-STD2-2 | UNI-STD2-3 | UNI-STD2-1 | UNI-STD2-4 |
| Power (W) | 10W-60W | 61W-100W | 101W-150W | 151W-250W |
| Max Projected Area (㎡) | 0.08 | 0.13 | 0.195 | 0.23 |
| Packing Dimension (mm) | 485×240×185 | 605×290×185 | 770×340×185 | 820×380×185 |
| Net Weight (kg) | 3±0.2 | 4±0.2 | 5±0.2 | 7±0.2 |
| Gross Weight (kg) | 4±0.2 | 5±0.2 | 6±0.2 | 8±0.2 |
Las especificaciones del producto son solo de referencia y están sujetas a los documentos del contrato oficial.
