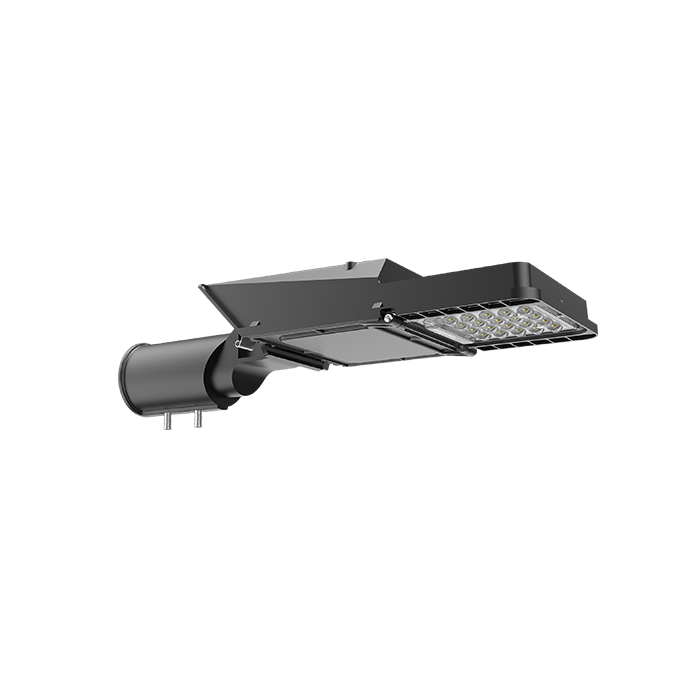

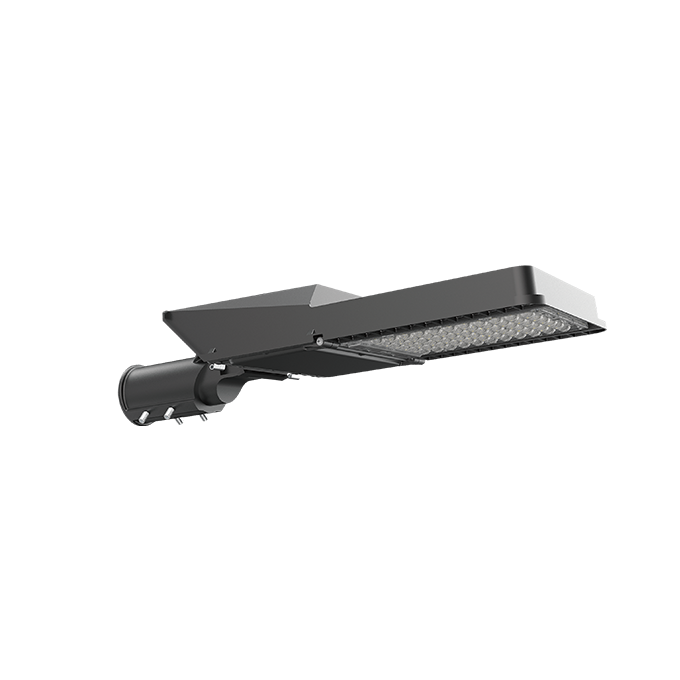

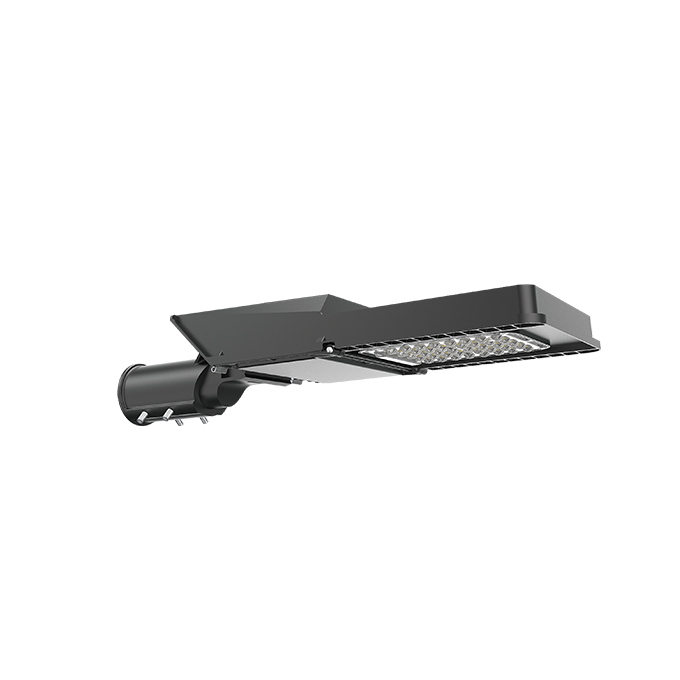

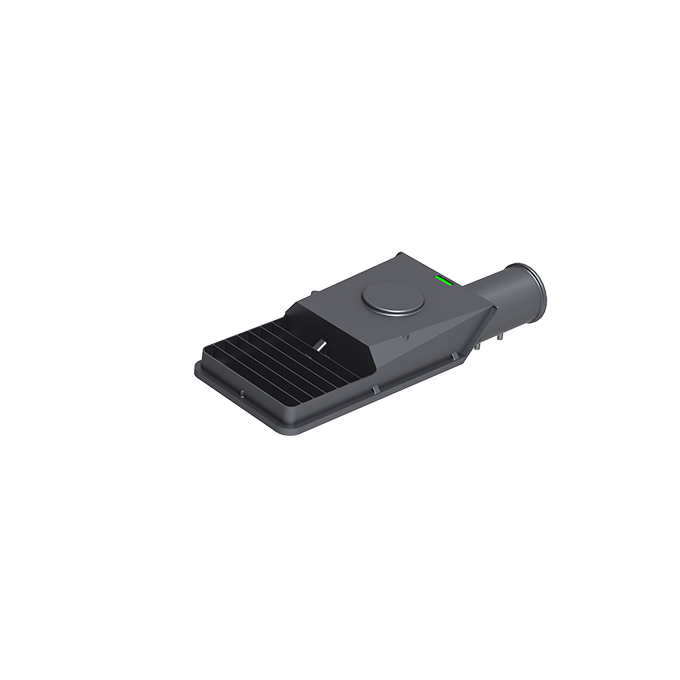

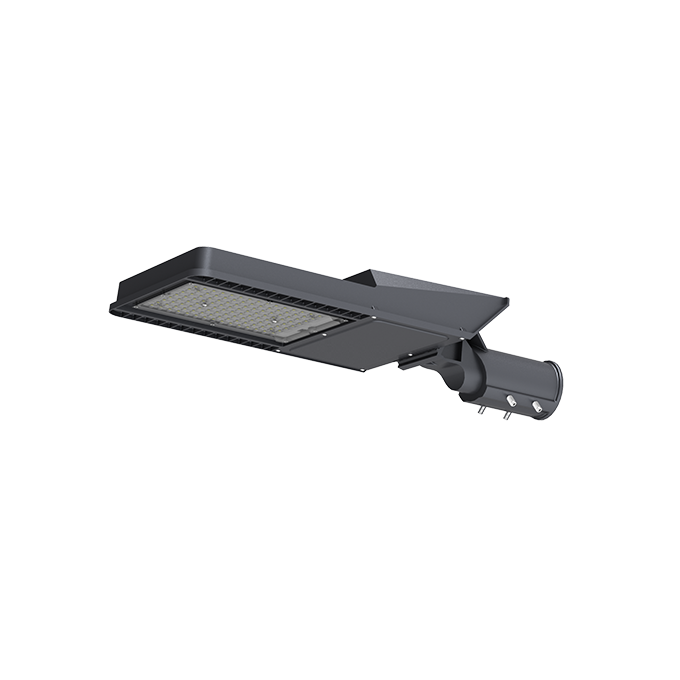

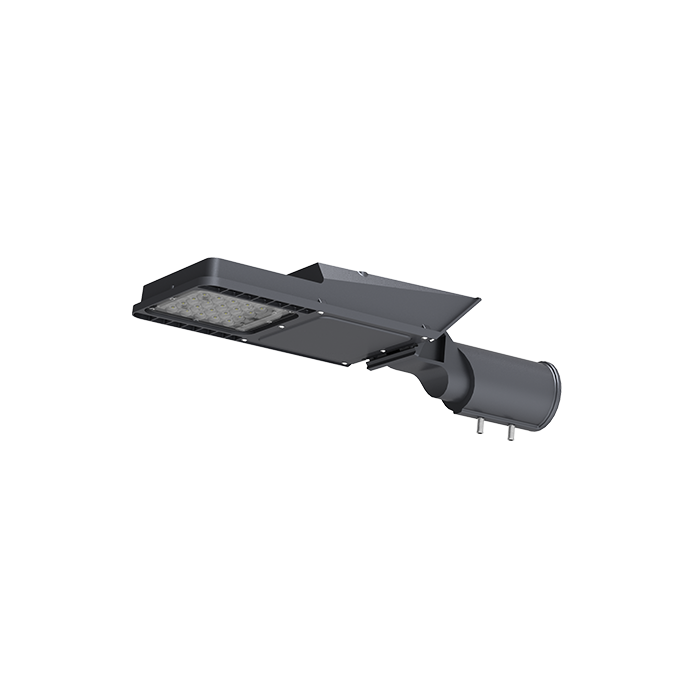

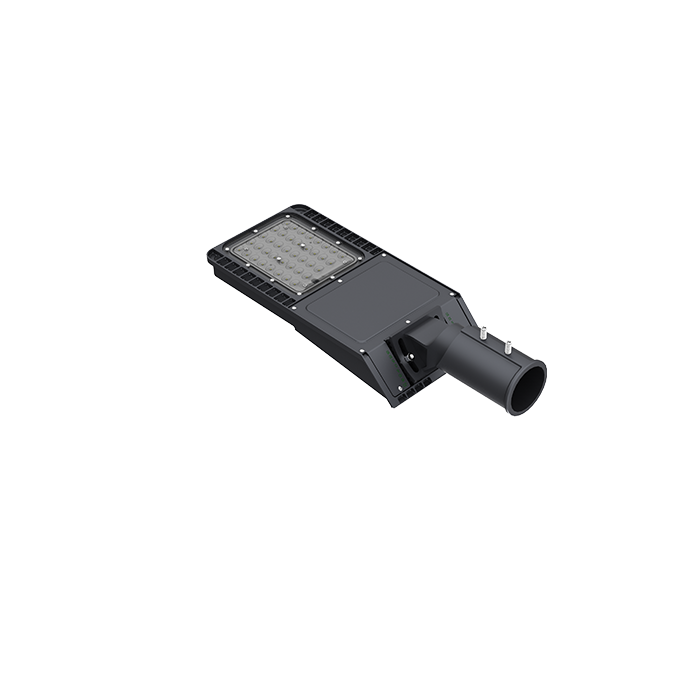

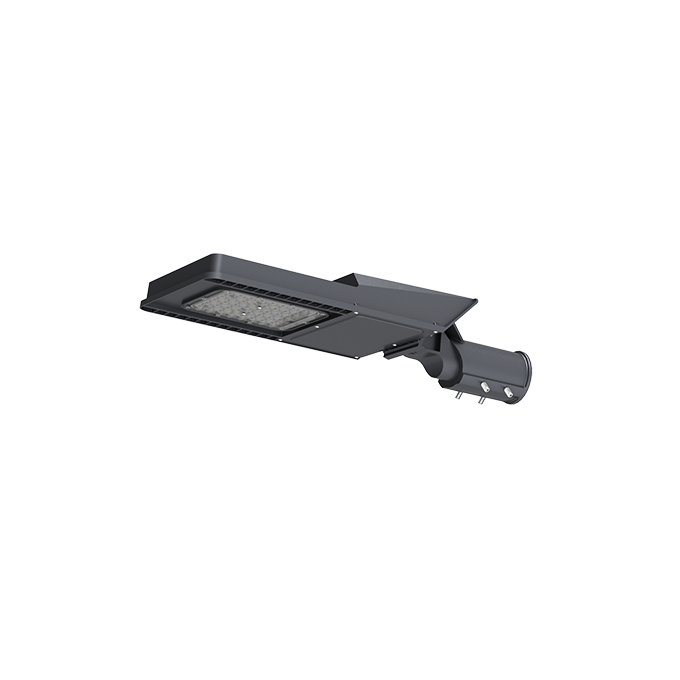

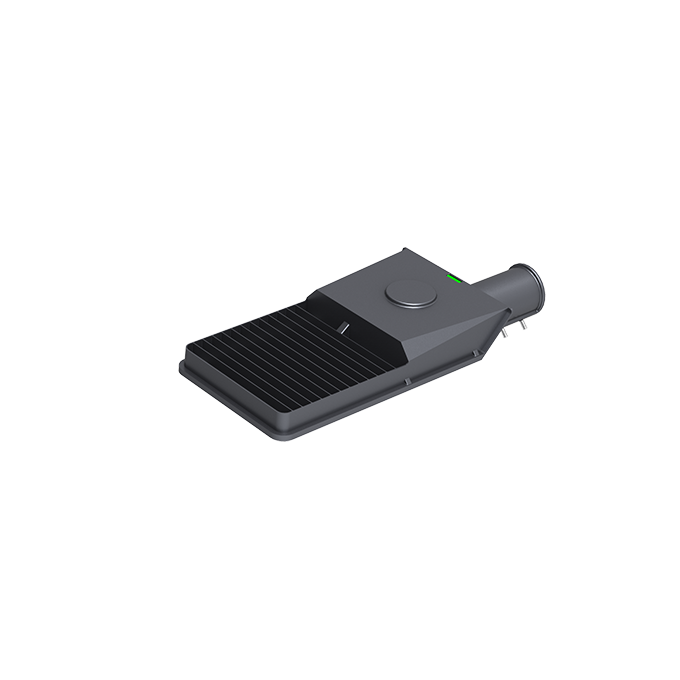

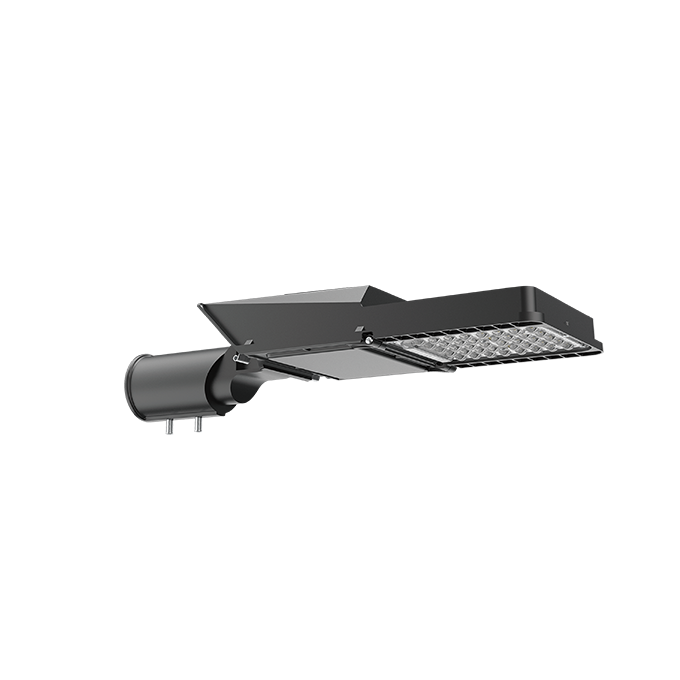

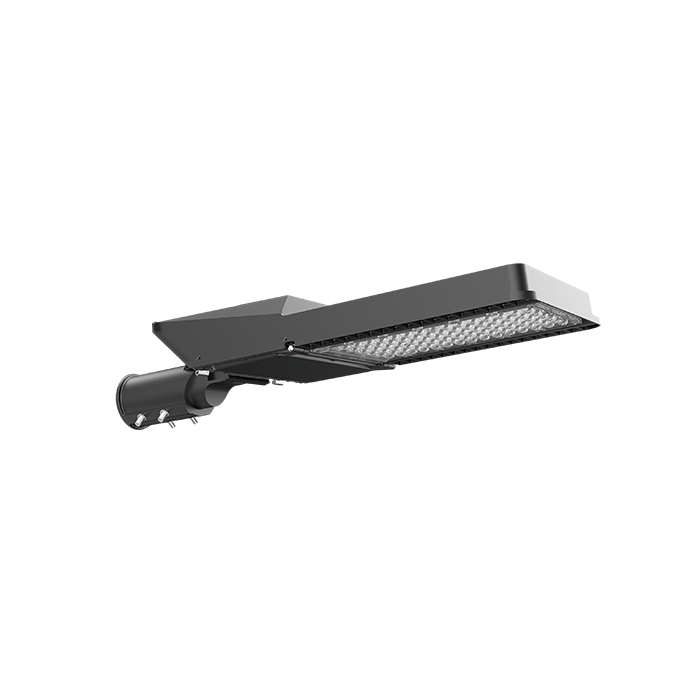

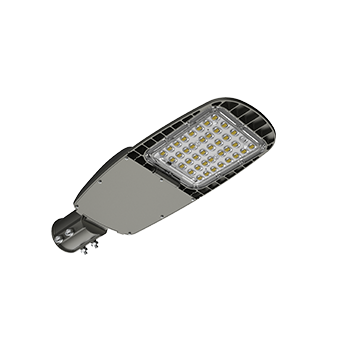

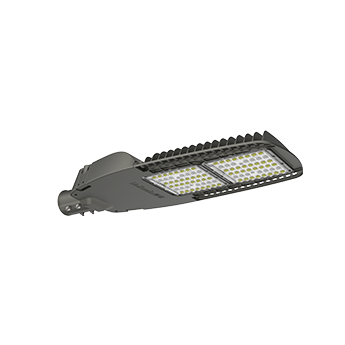

Guppy
Features
Sleek, integrated die-cast design
Tool-free opening for easy maintenance
High structural strength, wind resistance up to Level 17
Optical-grade PC lens, no yellowing for 5 years
Compact size, wide power range: 20W–200W
Adjustable angle: +20° to -20°
High performance, up to 80% energy savings
Wide voltage range: AC100–277V
Full-structure waterproof: IP66, IK08
Application scenarios
Highways
Arterial
Secondary
Branch roads
Major vehicle lanes
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-STB8-1 UNI-STB8-1A | UNI-STB8-2 UNI-STB8-2A | UNI-STB8-3 UNI-STB8-3A | UNI-STB8-4 UNI-STB8-4A | UNI-STB8-5 UNI-STB8-5A |
| Power (W) | 20-50 | 50-80 | 80-120 | 120-150 | 150-200 |
| Luminous Flux （lm） | 2600-6500/ 3000-7500 | 6500-10400/ 7500-12000 | 10400-15600/ 12000-18000 | 15600-19500/ 18000-22500 | 19500-26000/ 22500-30000 |
| Working Temp. | - 40 ℃ ～ 45 ℃ | ||||
| Working Humidity | 10 % ～ 90 % RH | ||||
| Storage Temp. | - 40 ℃ ～ 85 ℃ | ||||
| Housing Materials | Die-casting aluminum | ||||
| IP Grade | IP66 | ||||
| IK Grade | IK08 | ||||
| Life Span (Hrs) | 50,000 | ||||
Electrical
| Product Model | UNI-STB8-1 UNI-STB8-1A | UNI-STB8-2 UNI-STB8-2A | UNI-STB8-3 UNI-STB8-3A | UNI-STB8-4 UNI-STB8-4A | UNI-STB8-5 UNI-STB8-5A |
| Power (W) | 20-50 | 50-80 | 80-120 | 120-150 | 150-200 |
| Power Factor | ≥0.92 | ≥0.92 | ≥0.95 | ≥0.95 | ≥0.95 |
| Input Voltage | AC100-240V 50/60Hz | ||||
| Driver | Inventronics/Philips/Moso/Sosen | ||||
Optical
| Product Model | UNI-STB8-1 UNI-STB8-1A | UNI-STB8-2 UNI-STB8-2A | UNI-STB8-3 UNI-STB8-3A | UNI-STB8-4 UNI-STB8-4A | UNI-STB8-5 UNI-STB8-5A |
| Power (W) | 20-50 | 50-80 | 80-120 | 120-150 | 150-200 |
| LED | Osram/ Lumileds | ||||
| CCT（K） | 3000K/4000K/5000K/5700K/6500K | ||||
| Luminaire Efficiency@4000K、Ta=25℃ (lm/W) | Option:130,150lm/W | ||||
| CRI | 70 | ||||

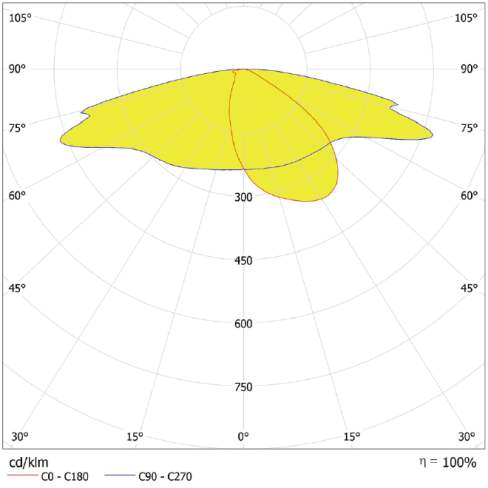

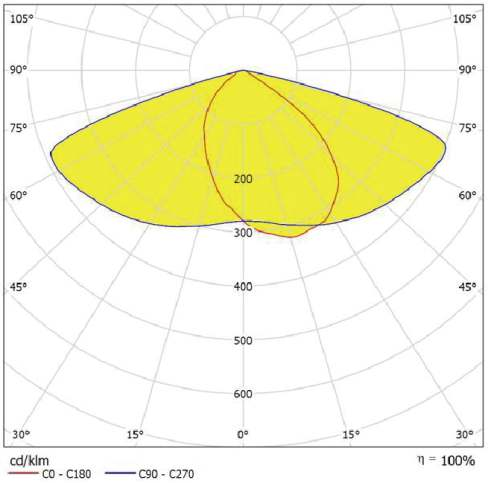

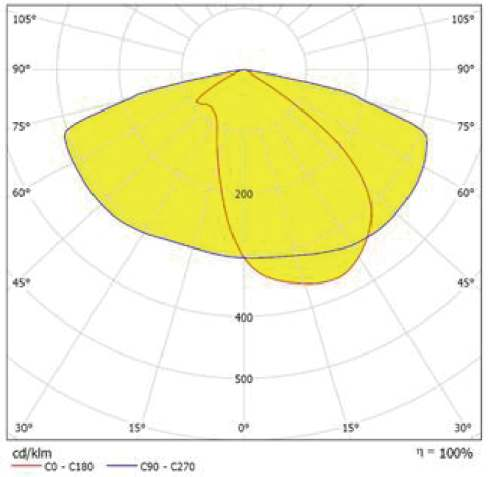

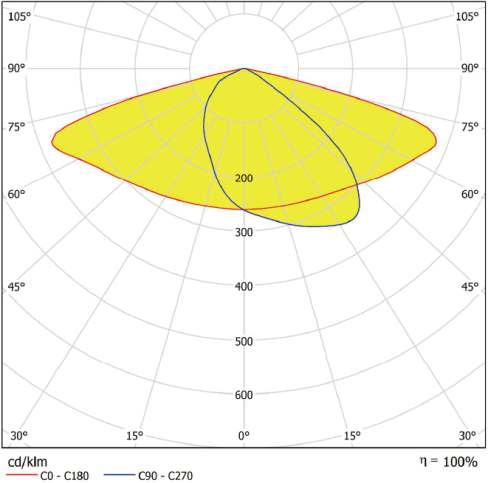

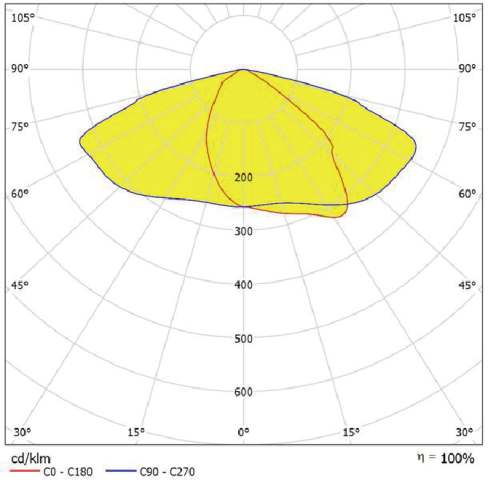

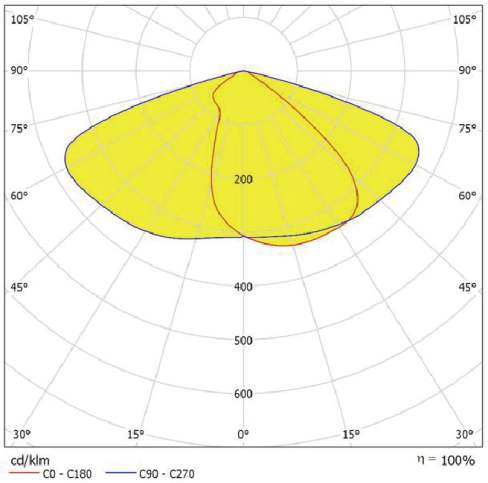

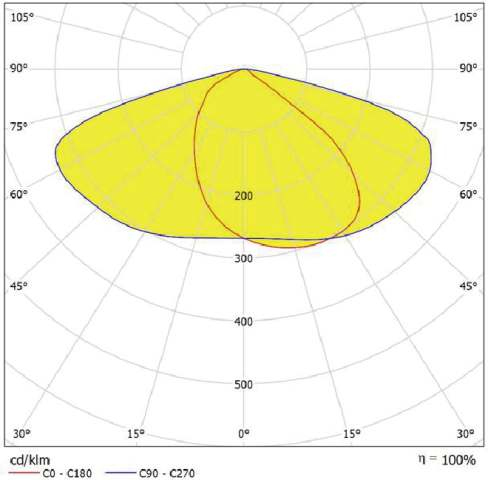

Light Distribution
Type Ⅱ(UNI-717)
TypeⅡ(UNI-732)
TypeⅡ(UNI-839)
TypeⅡ(UNI-677)
TypeⅡ(UNI-790)
TypeⅡ(UNI-840)
TypeⅡ(UNI-891)
Dementions
| Product Model | UNI-STB8-1 UNI-STB8-1A | UNI-STB8-2 UNI-STB8-2A | UNI-STB8-3 UNI-STB8-3A | UNI-STB8-4 UNI-STB8-4A | UNI-STB8-5 UNI-STB8-5A |
| Power (W) | 20-50 | 50-80 | 80-120 | 120-150 | 150-200 |
| Max Projected Area (㎡) | 0.09 | 0.1 | 0.12 | 0.14 | 0.16 |
| Product Dimension (mm) | 456×168×103 | 506×185×102 | 558×225×102 | 578×250×110 | 639×260×112 |
| Packing Dimension (mm) | 485×460×220 | 535×500×220 | 580×295×220 | 620×320×220 | 660×330×225 |
| Net Weight (kg) | 2.5±0.2 | 2.9±0.2 | 4.0±0.2 | 4.4±0.2 | 5.2±0.2 |
| Gross Weight (kg) | 10.58±0.2(4PCS) | 12.5±0.2(4PCS) | 8.3±0.2(2PCS) | 9.5±0.5(2PCS) | 10.4±0.2(2PCS) |
Certifications
