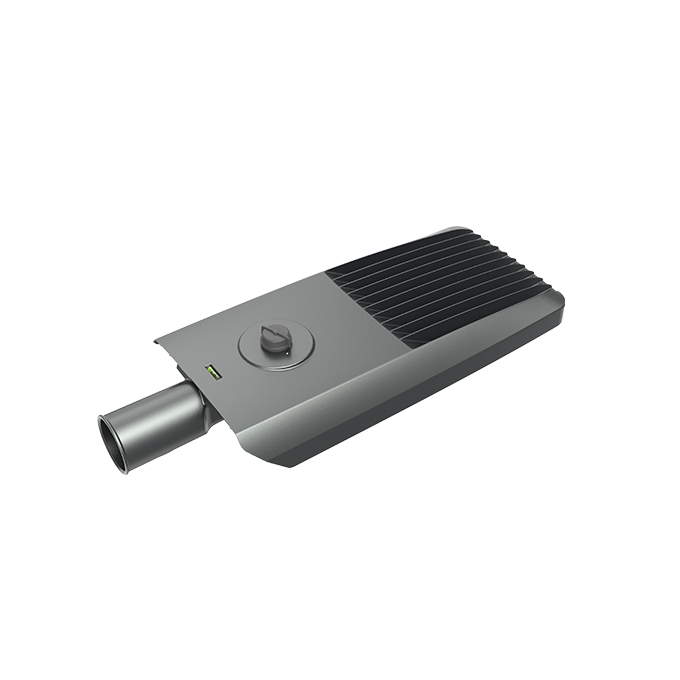

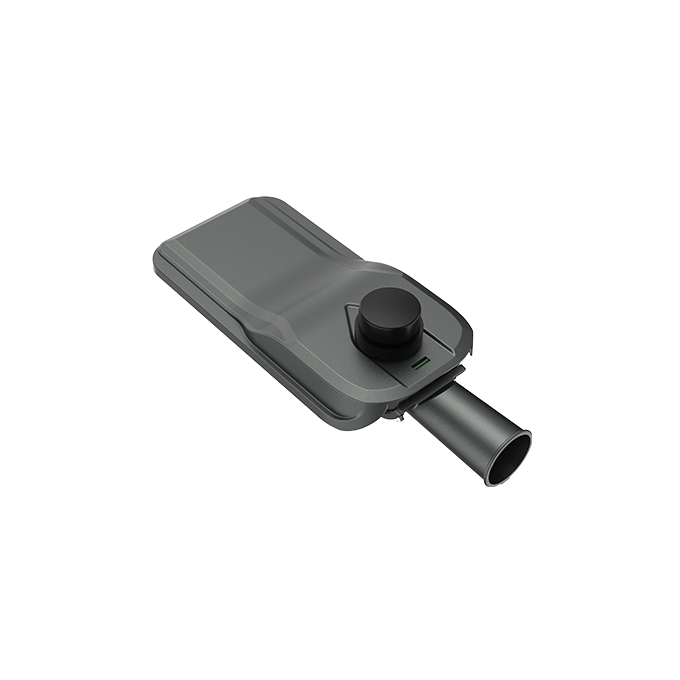

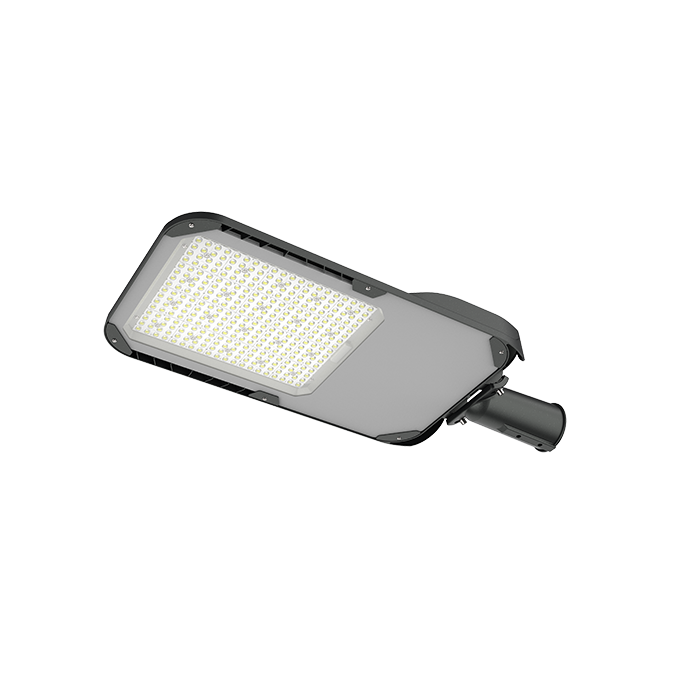

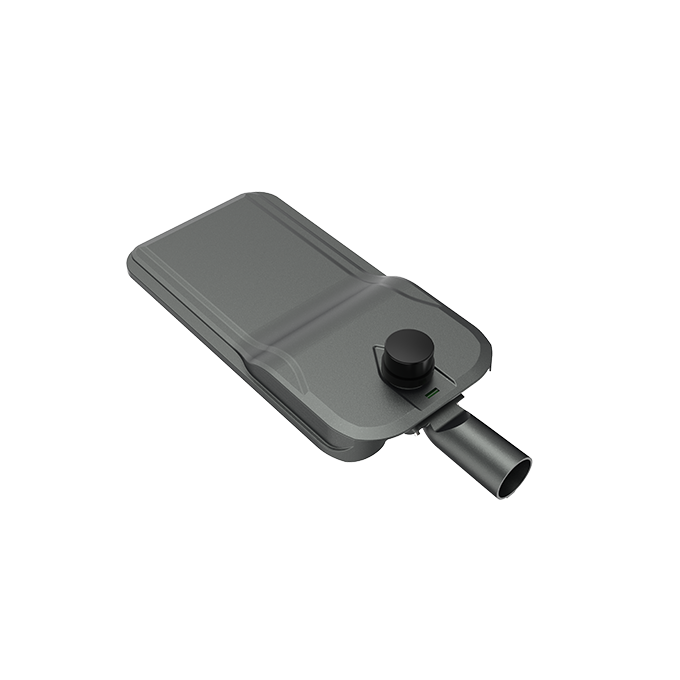

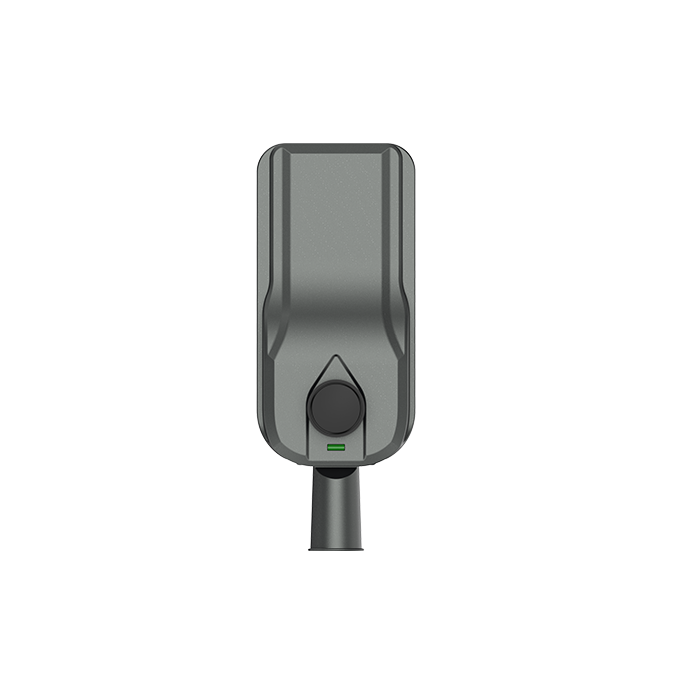

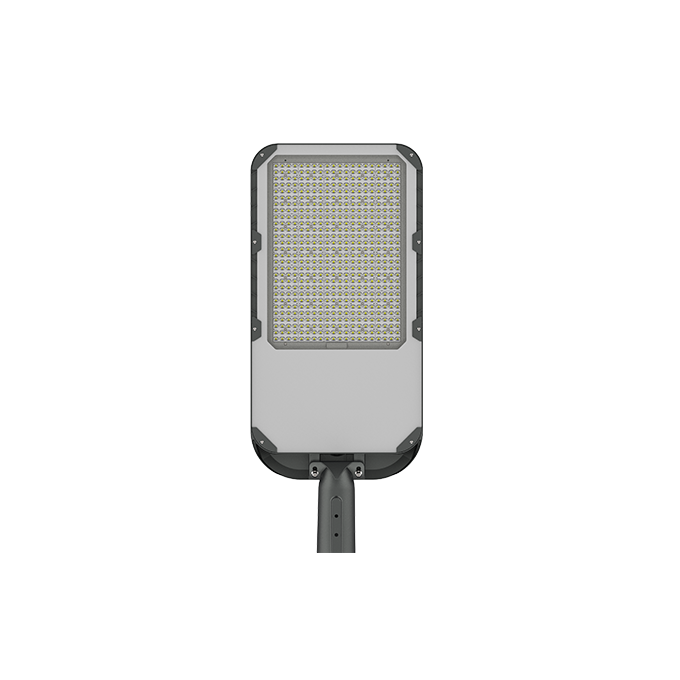

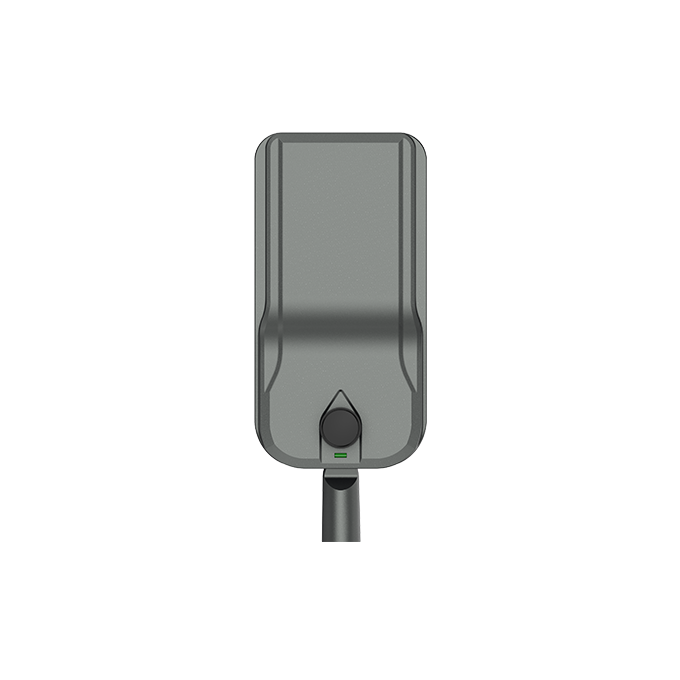

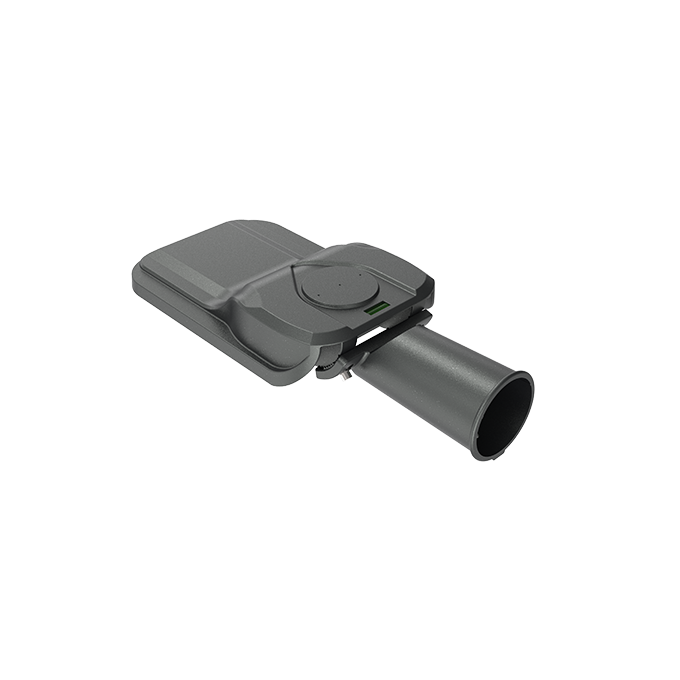

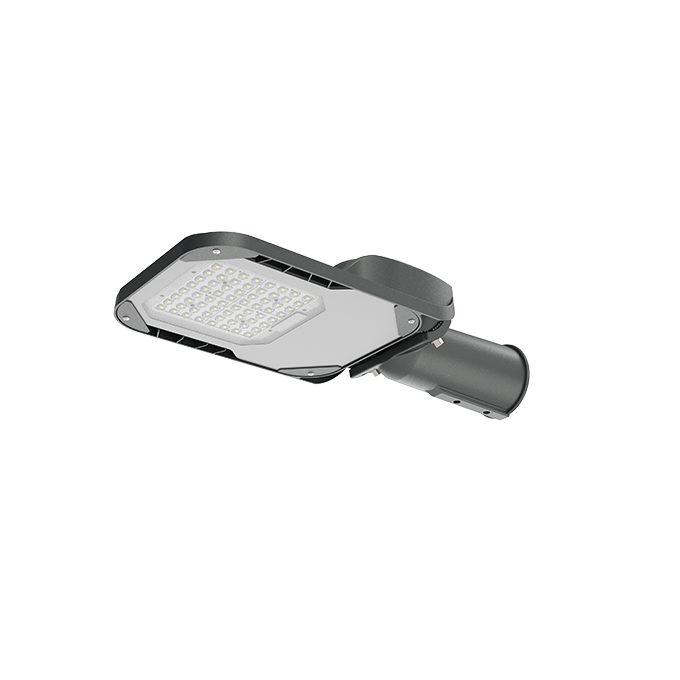

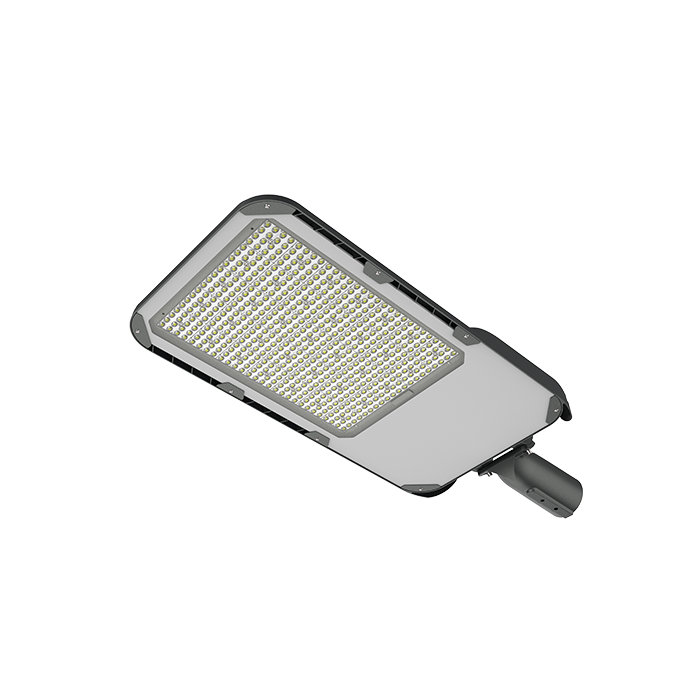

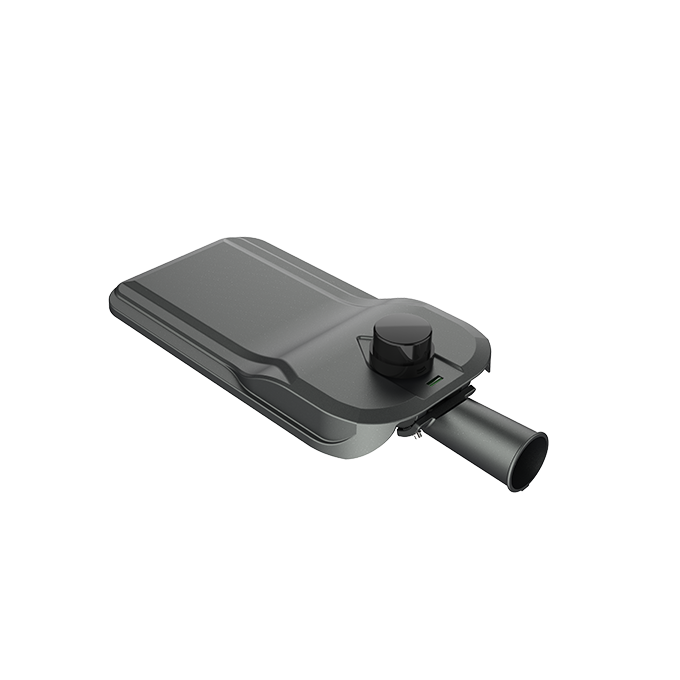

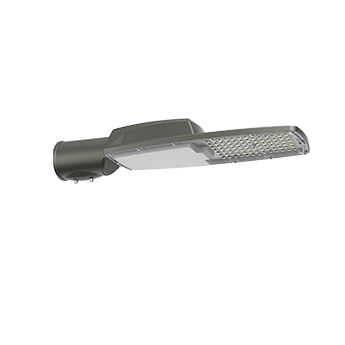

Carp
Features
Integrated die-cast body with high structural strength, wind resistance up to Level 17
Optical-grade PMMA lens + full-piece ultra-clear tempered glass, 10-year anti-yellowing
Maximum power 250W
Wide voltage range: AC100–277V
Adjustable angle: +20° to -20°
Standard features: auto power-off switch, level gauge
High protection: IP66, IK08
Multiple interfaces: optional NEMA and ZHAGA
Application scenarios
Highways
Arterial
Secondary
Branch roads
Major vehicle lanes
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-STD7-1-030 | UNI-STD7-2-060 | UNI-STD7-2-075 | UNI-STD7-3-100 | UNI-STD7-4-140 | UNI-STD7-5-180 | UNI-STD7-6-250 |
| Power (W) | 30 | 60 | 75 | 100 | 140 | 180 | 250 |
| Luminous Flux （lm） | 4800lm | 9600lm | 12000lm | 16000lm | 22400lm | 28800lm | 40000lm |
| Working Temp. | - 40 ℃ ～50 ℃ | ||||||
| Working Humidity | 10 % ～ 90 % RH | ||||||
| Storage Temp. | - 40 ℃ ～ 55 ℃ | ||||||
| Housing Materials | Die-casting Aluminum +Tempered glass | ||||||
| IP Grade | IP66 | ||||||
| IK Grade | IK08 | ||||||
| Life Span (Hrs) | 50000 | ||||||
Electrical
| Product Model | UNI-STD7-1-030 | UNI-STD7-2-060 | UNI-STD7-2-075 | UNI-STD7-3-100 | UNI-STD7-4-140 | UNI-STD7-5-180 | UNI-STD7-6-250 |
| Power (W) | 30 | 60 | 75 | 100 | 140 | 180 | 250 |
| Power Factor | ≥0.92 | ≥0.92 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
| Input Voltage | AC100-277V 50/60Hz | ||||||
| Driver | Inventronics/Moso/Sosen | ||||||
Optical
| Product Model | UNI-STD7-1-030 | UNI-STD7-2-060 | UNI-STD7-2-075 | UNI-STD7-3-100 | UNI-STD7-4-140 | UNI-STD7-5-180 | UNI-STD7-6-250 |
| Power (W) | 30 | 60 | 75 | 100 | 140 | 180 | 250 |
| LED | International/Chinese brand 5050/3030 | ||||||
| CCT（K） | 3000K/4000K/5000K/5700K | ||||||
| Luminaire Efficiency@4000K、Ta=25℃ (lm/W) | 160 | ||||||

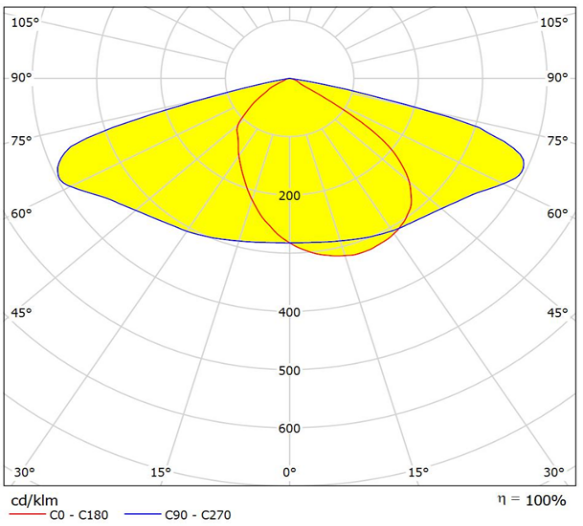

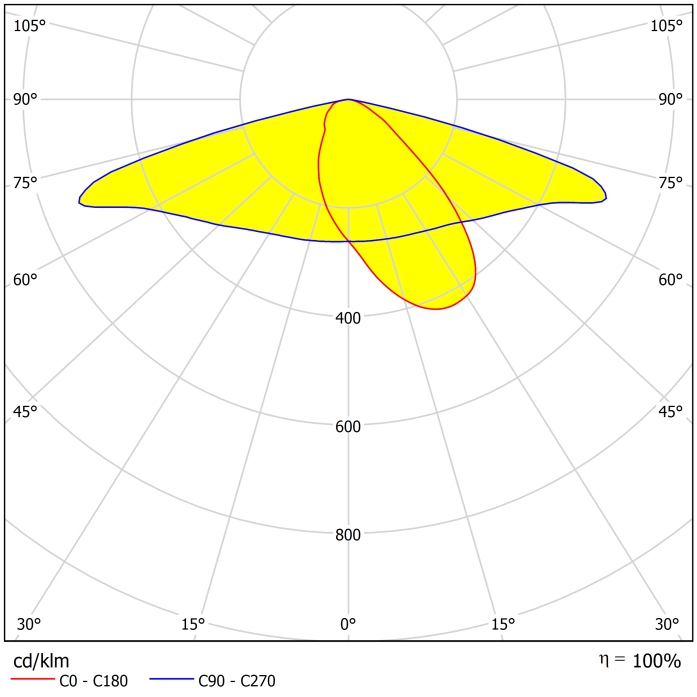

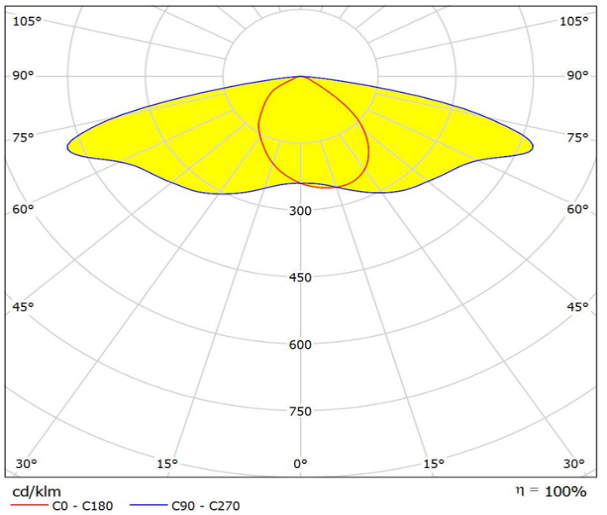

Light Distribution
Type Ⅱ (UNI-1044-00)
Dementions
| Product Model | UNI-STD7-1-030 | UNI-STD7-2-060 | UNI-STD7-2-075 | UNI-STD7-3-100 | UNI-STD7-4-140 | UNI-STD7-5-180 | UNI-STD7-6-250 |
| Power (W) | 30 | 60 | 75 | 100 | 140 | 180 | 250 |
| Product Dimension (mm) | 400X180X80 | 515X200X85 | 515X200X85 | 565X220X85 | 635X240X85 | 665X290X85 | 810x340x88 |
| Packing Dimension (mm) | 460X240X165 | 575X260X165 | 575X260X165 | 635X280X165 | 705X310X165 | 745X360X165 | 890X410X175 |
| Net Weight (kg) | 3 | 3.5 | 4 | 6 | 7.5 | 8 | 9 |
| Gross Weight (kg) | 3 | 4 | 4.5 | 6.5 | 8 | 8.5 | 9.5 |
