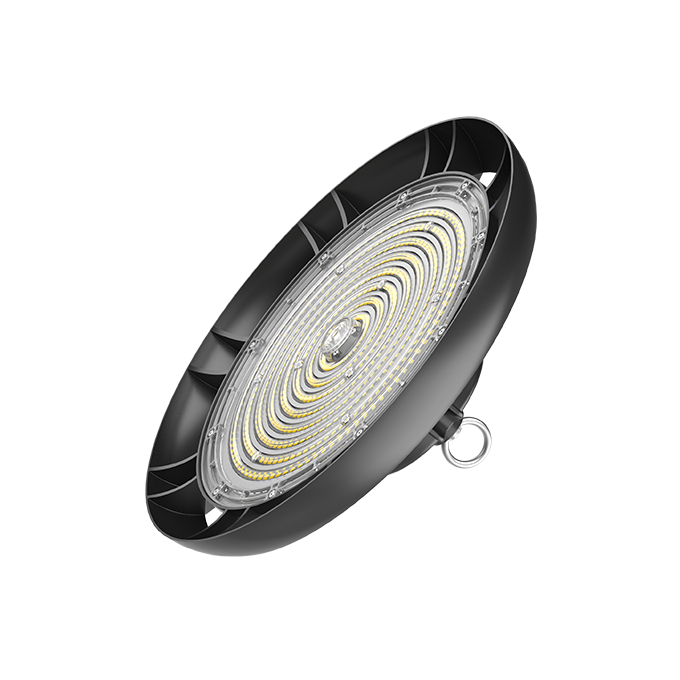

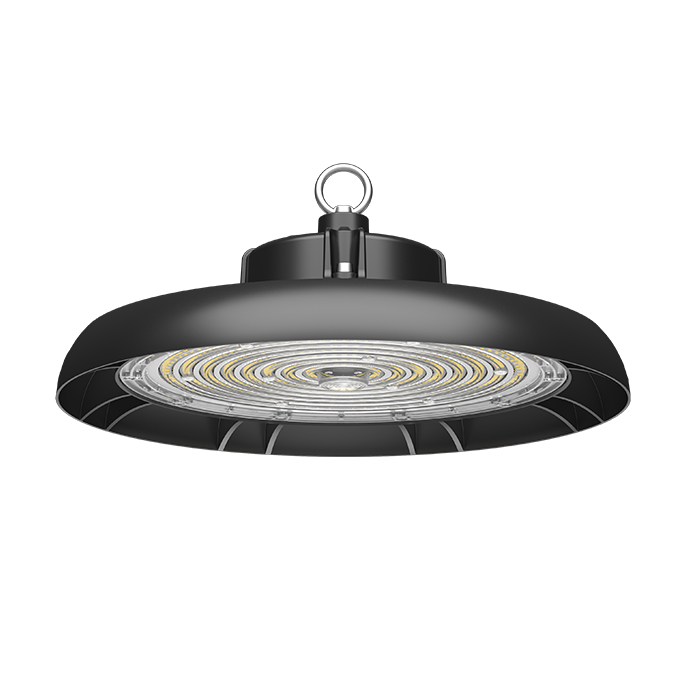

Edge Ⅱ
Features
Power range: 100W–240W CCT: 1800K-6500K
Lamp Efficiency：Up to 190Lm/W Max. Output: 45600Lm
Lighting Distribution: 60°/90°/120° Optic: PC

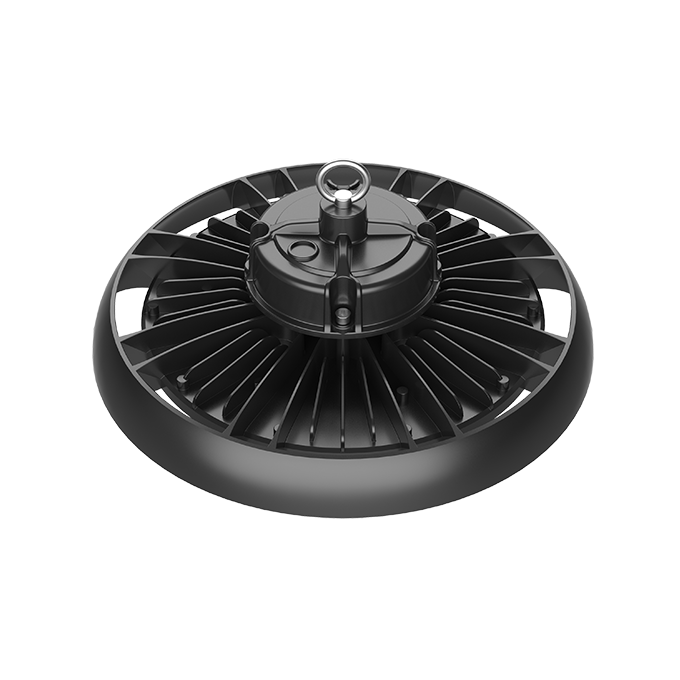

Anti-corrosion die-casting aluminum with heat sinks design
Support 3 mount modes of Hanging Chain , Sag rod and U shaped bracket , more widely used
Protection Rate: IP65, IK08
Working Temperature：-30°-50°
Lifespan: ＞100,000 hours Warranty 5
Application scenarios
Factories
Warehouses
Logistics Centers
Large Supermarkets
Indoor Sports Venues
Maintenance Sheds
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-HBE7-1-100 | UNI-HBE7-2-150 | UNI-HBE7-3-200 | UNI-HBE7-4-240 | UNI-HBE7G2-1-100 | UNI-HBE7G2-2-150 | UNI-HBE7G2-3-200 | UNI-HBE7G2-3-240 |
| Power (W) | 100 | 150 | 200 | 240 | 100 | 150 | 200 | 240 |
| Luminous Flux（lm） | 15000/17000/19000 | 22500/25500/28500 | 30000/34000/38000 | 36000/40800/45600 | 15000/17000/ 19000 | 22500/25500/ 28500 | 30000/34000/ 38000 | 36000/40800/ 45600 |
| Working Temp. | - 35 ℃ ～ 50 ℃ | |||||||
| Working Humidity | 10 % ～ 90 % RH | |||||||
| Storage Temp. | - 30 ℃ ～ 50 ℃ | |||||||
| Housing Materials | Die-casting aluminum + PC | |||||||
| Finishing color | Black | |||||||
| IP Grade | IP65 | |||||||
| IK Grade | IK08 | |||||||
| Surge Protection | L-N: 6KV 、 L/N-G: 6KV | |||||||
| Life Span | 50000Hrs | |||||||
Electrical
| Product Model | UNI-HBE7-1-100 | UNI-HBE7-2-150 | UNI-HBE7-3-200 | UNI-HBE7-4-240 | UNI-HBE7G2-1-100 | UNI-HBE7G2-2-150 | UNI-HBE7G2-3-200 | UNI-HBE7G2-3-240 |
| Power (W) | 100 | 150 | 200 | 240 | 100 | 150 | 200 | 240 |
| Power Factor | PF≥0.95 | |||||||
| Input Voltage | AC100-277V 50/60Hz | |||||||
Optical
| Product Model | UNI-HBE7-1-100 | UNI-HBE7-2-150 | UNI-HBE7-3-200 | UNI-HBE7-4-240 | UNI-HBE7G2-1-100 | UNI-HBE7G2-2-150 | UNI-HBE7G2-3-200 | UNI-HBE7G2-3-240 |
| Power (W) | 100 | 150 | 200 | 240 | 100 | 150 | 200 | 240 |
| CCT（K） | 3000K / 4000K / 5000K / 5700K / 6500K | |||||||
| Color Tolerance | SDCM≤5 | |||||||
| Luminaire Efficiency @5000K Ra80 90° 25℃（lm/W） | 150 / 170 / 190 | |||||||
| CRI | 70/80 | |||||||
Light Distribution

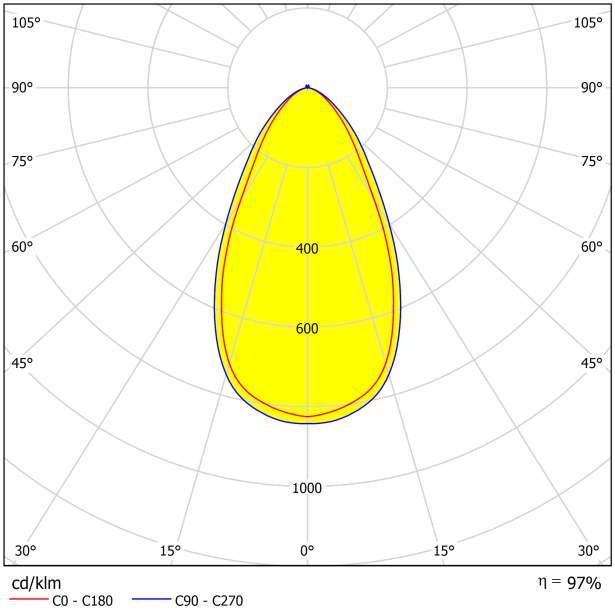

UNI-HBE7-60°

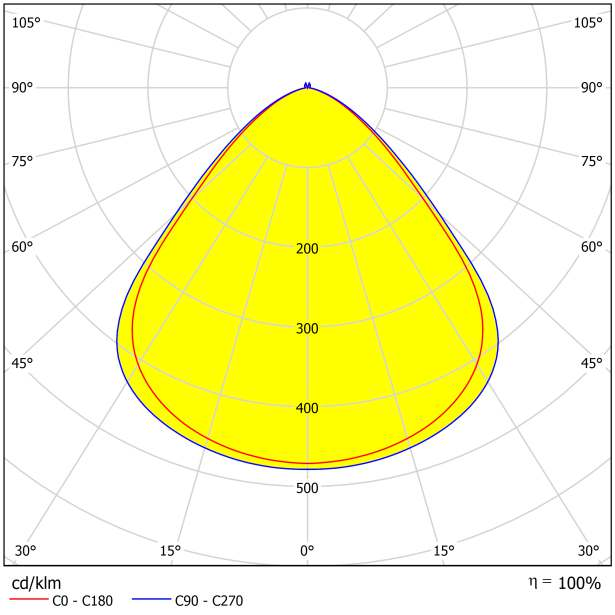

UNI-HBE7-90°

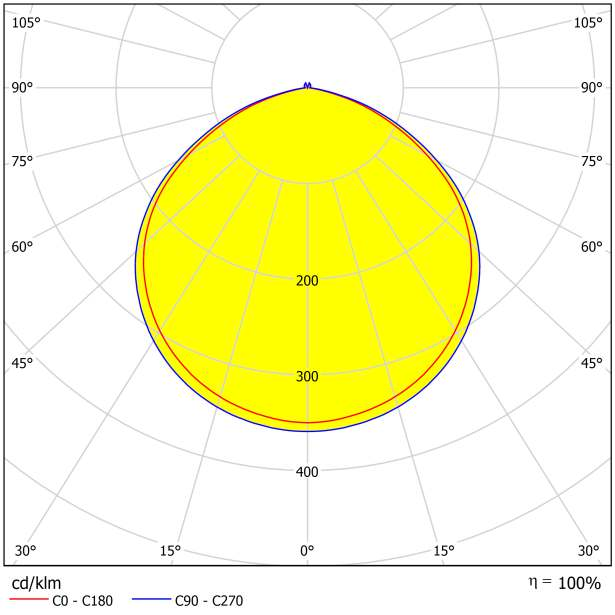

UNI-HBE7-120°
Dementions
| Product Model | UNI-HBE7-1-100 | UNI-HBE7-2-150 | UNI-HBE7-3-200 | UNI-HBE7-4-240 | UNI-HBE7G2-1-100 | UNI-HBE7G2-2-150 | UNI-HBE7G2-3-200 | UNI-HBE7G2-3-240 |
| Power (W) | 100 | 150 | 200 | 240 | 100 | 150 | 200 | 240 |
| Product Dimension (mm) | φ259*106 | φ285*111 | φ341*120 | φ373*137 | Φ236*H101 | Φ286*H106 | Φ336*H115 | Φ336*H115 |
| Packing Dimension (mm) | 310*310*145 | 336*336*150 | 390*390*160 | 425*425*170 | 280*280*135 | 336*336*150 | 370*370*150 | 370*370*150 |
| Net Weight (kg) | 1.8 | 2 | 2.4 | 2.55 | 1.45 | 1.85 | 2.35 | 2.45 |
| Gross Weight (kg) | 2.15 | 2.6 | 3 | 3.5 | 1.9 | 2.4 | 3 | 3.1 |
| Accessory | Surface mount bracket / AL visor | |||||||
Las especificaciones del producto son solo de referencia y están sujetas a los documentos del contrato oficial.
