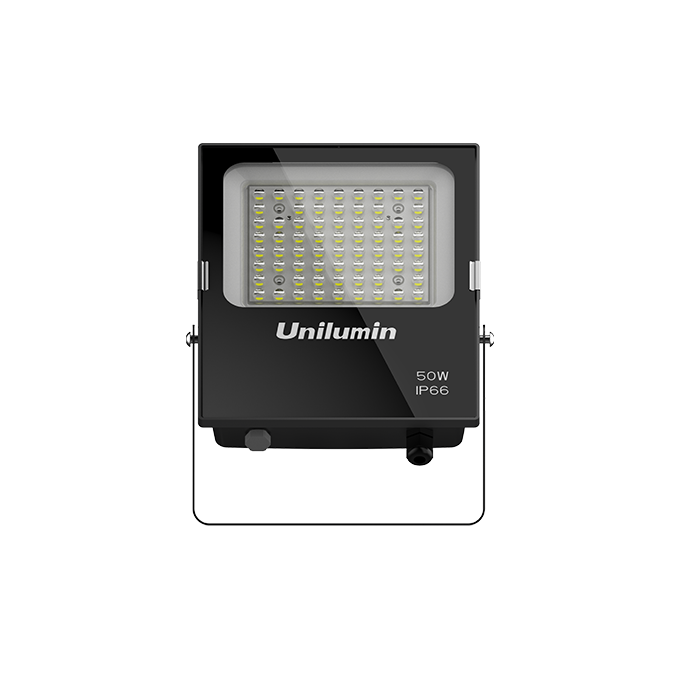

GeniFlood
Features
Power range: 50W–200W. Max. Output: 31,000 Lm
Luminaire efficiency: up to 155 lm/W. CCT: 1800K-6500K
Materials: Anti-Corrosion Die-cast Aluminum Housing with heat sinks design
Installation: 0°～270° adjustable mounting angle design
Modular design optimize the flexibility to fit different application needs
Protection Rate: IP66 IK08; Lifespan: >100,000 hours
Certifications & Reports: CE/CB/IEC 62471/IP66/IK07
Application scenarios
High-mast intersections
Airport viaducts
Ports and coastal areas
Large manufacturing and maintenance workshops
Sports and entertainment venues
Billboards
Landscape and ground lighting
Outdoor parking lots
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-PR13 -1-050 | UNI-PR13 -2-100 | UNI-PR13 -3-150 | UNI-PR13 -4-200 |
| Nominal Power （W） | 50 | 100 | 150 | 200 |
| Working Temp. | - 40 ℃ ~ 45 ℃ | |||
| Working Humidity | 10 % ~ 90% RH | |||
| Storage Temp. | -40 ℃ ~ 65 ℃ | |||
| Warranty | 5 years | |||
| Life time | 50000 hours | |||
Electrical
| Product Model | UNI-PR13 -1-050 | UNI-PR13 -2-100 | UNI-PR13 -3-150 | UNI-PR13 -4-200 |
| Nominal Power （W） | 50 | 100 | 150 | 200 |
| Input Voltage/Frequency | AC100-240V 50/60Hz | |||
| Power Factor | ≥0.90 | |||
Optical
| Product Model | UNI-PR13 -1-050 | UNI-PR13 -2-100 | UNI-PR13 -3-150 | UNI-PR13 -4-200 |
| Nominal Power （W） | 50 | 100 | 150 | 200 |
| CCT | 3000K±300K/4000K±300K/6500K±500K | |||
| SDCM | <7 | |||
| CRI | 70/80 | |||

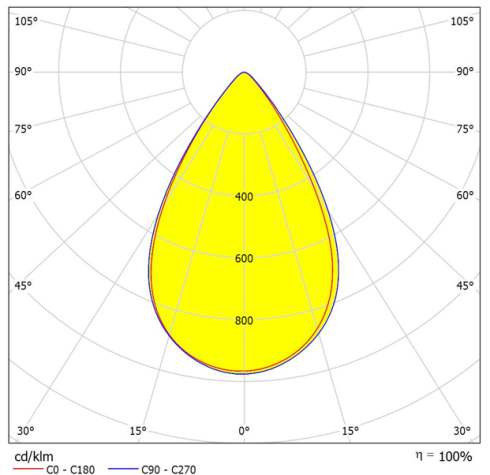

Light Distribution

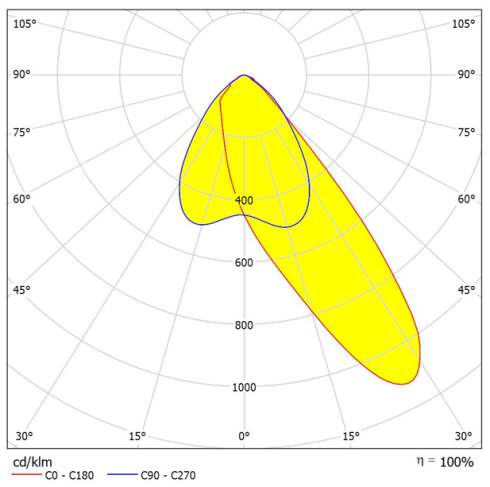

30°x 80°(UNI-863)

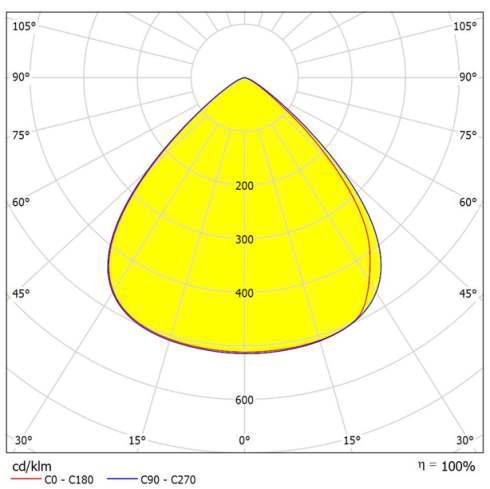

60°(UNI-861)

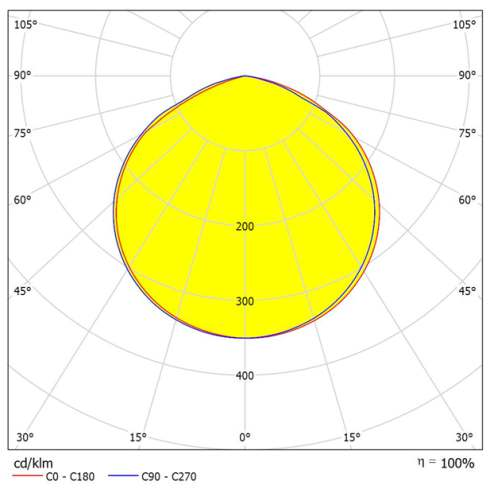

90°(UNI-862)
120°
Dementions
| Product Model | UNI-PR13 -1-050 | UNI-PR13 -2-100 | UNI-PR13 -3-150 | UNI-PR13 -4-200 |
| Nominal Power （W） | 50 | 100 | 150 | 200 |
| Max. Projection Area（m²） | 0.046 | 0.075 | 0.12 | 0.14 |
| Luminaire Size（mm） | 287×211×47 | 361×259×51 | 450×335×52 | 476×361×61 |
| Mounting Hole Spacing | 80mm | 100m | 120mm | 160mm |
| Cartoon box Size（mm） | 325×280×285 ( 4 in 1) | 440×330×330 (4 in 1) | 530×200×395 (2 in 1) | 555×210×425 (2 in 1) |
| Net Weight（kg）±0.1 | 1.5 | 2.6 | 4 | 5.3 |
| Gross Weight（kg）±0.1 | 6.9 | 11.4 | 9.1 | 10.9 |
Las especificaciones del producto son solo de referencia y están sujetas a los documentos del contrato oficial.
