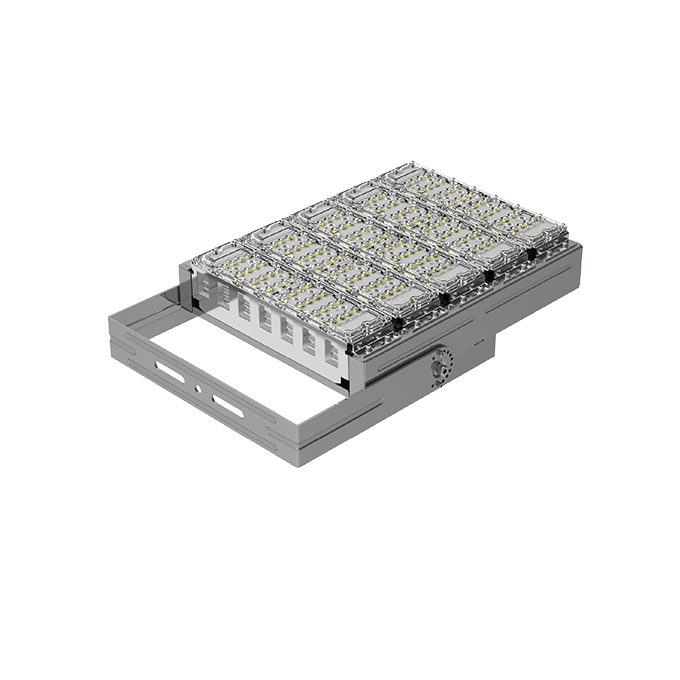

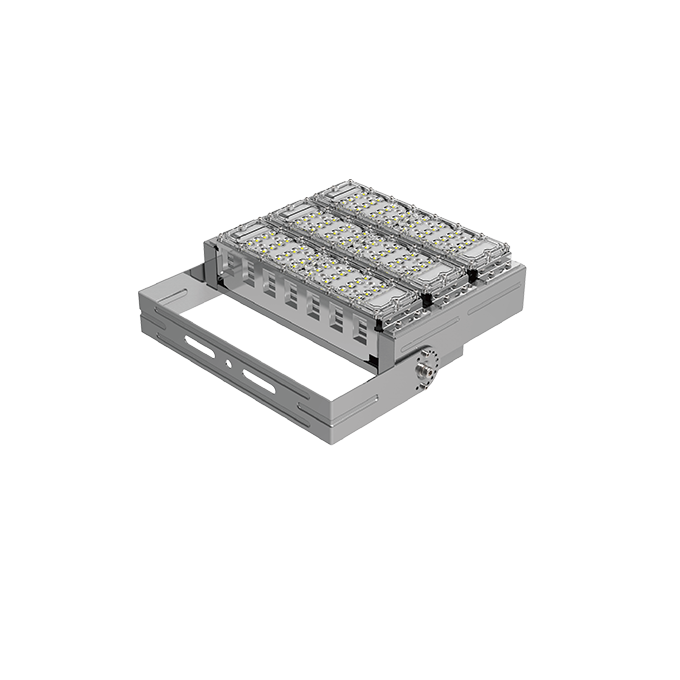

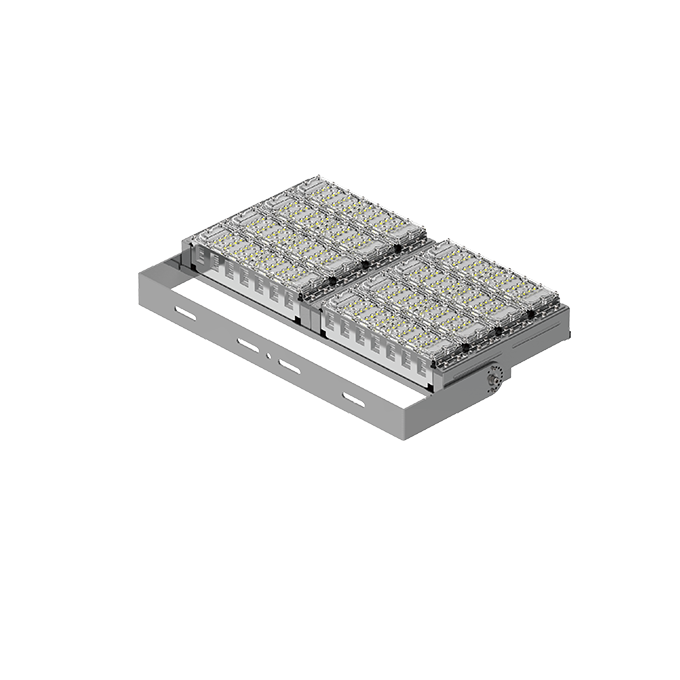

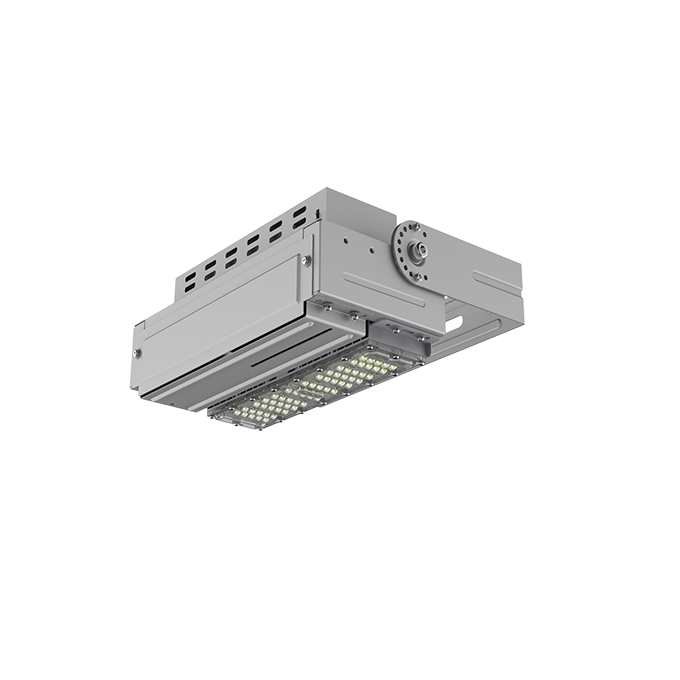

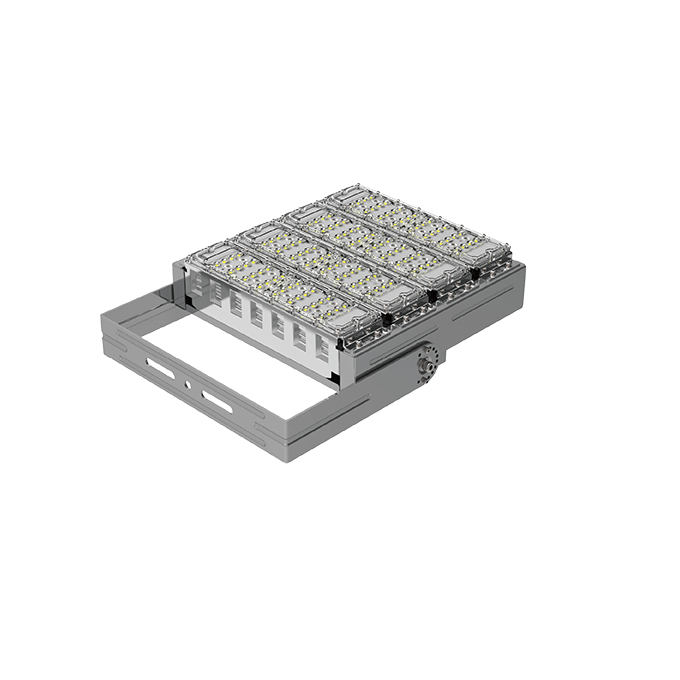

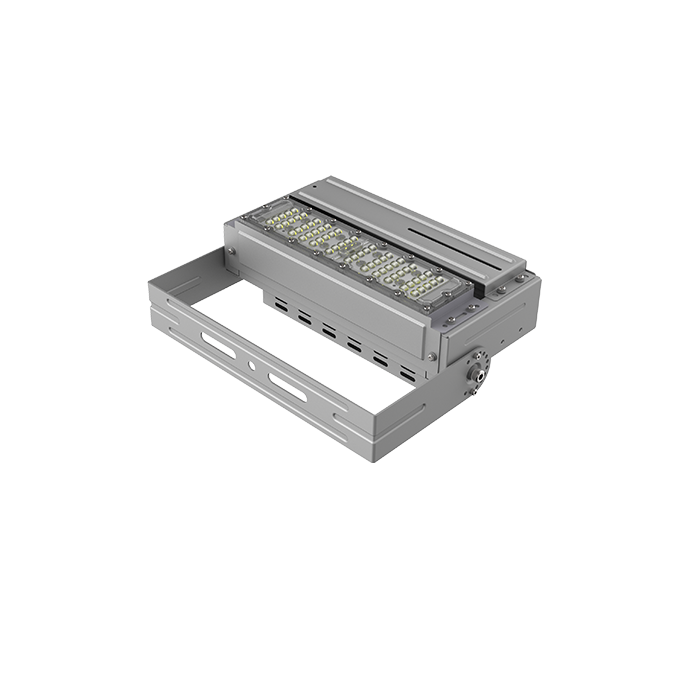

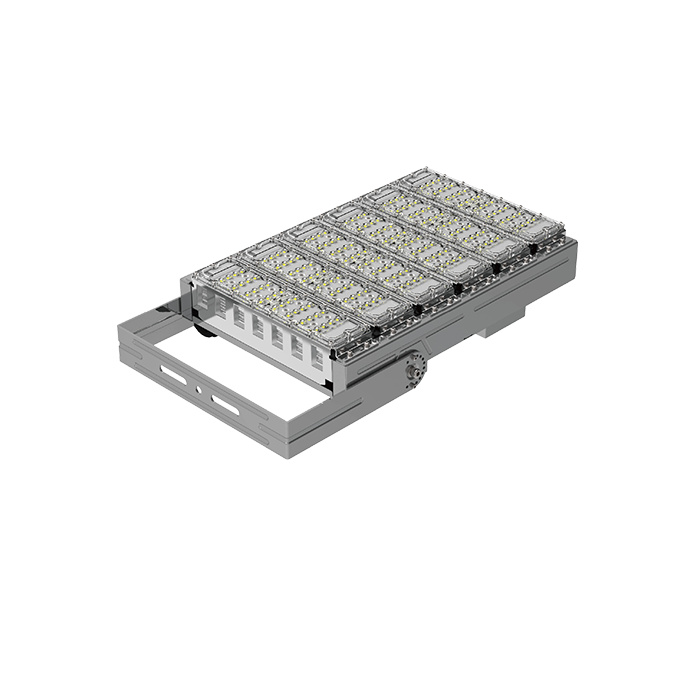

ModuLux
Features
Power range: 40W–480W. Max. Output: 91,200 Lm
Luminaire efficiency: up to 190 lm/W. CCT: 1800K-6500K
Materials: PC, Anti-Corrosion Die-cast Aluminum Housing
Installation: -50°～140° adjustable mounting angle design
Modular design optimize the flexibility to fit different application needs
Protection Rate: IP66 up to IK10; Lifespan: >100,000 hours
Certifications & Reports: CE/RoHS/IK08
Application scenarios
High-mast intersections
Airport viaducts
Ports and coastal areas
Large manufacturing and maintenance workshops
Sports and entertainment venues
Billboards
Landscape and ground lighting
Outdoor parking lots
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-PR05-1 | UNI-PR05-2 | UNI-PR05-3 | UNI-PR05-4 | UNI-PR05-5 | UNI-PR05-6 | UNI-PR05-8 |
| Rated Power (W) | 40~60 | 80~120 | 150~200 | 220~240 | 300 | 360 | 480 |
| Light Source | Philips/Osram/Samsung 3030 or 5050 | ||||||
| Rated Input Voltage / Frequency | AC100-277V 50/60HZ | ||||||
| Power Factor | ≥0.98 | ||||||
| Rated Lumen (lm) | 6000~9000 | 12000~18000 | 22500~30000 | 33000~36000 | 45000 | 54000 | 72000 |
| Operating Temperature | - 40 ℃ ~ 45 ℃ | ||||||
| Operating Humidity | 10 % ~ 90 % RH | ||||||
| Storage Temperature | -40 ℃ ~ 55 ℃ | ||||||
| Lifespan | 50,000 Hours | ||||||
| Housing Material | Aluminum alloy+ PC | ||||||
| Protection Degree | IP66 | ||||||
| Installation Height (m) | 10~30 | ||||||
| Installation accessories | M10 screw and nut | ||||||
| Tilting Angle Range | -50°～140° | ||||||
Electrical
| Product Model | UNI-PR05-1 | UNI-PR05-2 | UNI-PR05-3 | UNI-PR05-4 | UNI-PR05-5 | UNI-PR05-6 | UNI-PR05-8 |
| Rated Power (W) | 40~60 | 80~120 | 150~200 | 220~240 | 300 | 360 | 480 |
| Luminiare Efficacy | Up to 150 lm/W @2300K 5050LED, Ta=25℃ | ||||||
| Color Temperature | 3000±300K/4000±300K/5000±300K/5700±500K/6500±500K | ||||||
Optical
| Product Model | UNI-PR05-1 | UNI-PR05-2 | UNI-PR05-3 | UNI-PR05-4 | UNI-PR05-5 | UNI-PR05-6 | UNI-PR05-8 |
| Rated Power (W) | 40~60 | 80~120 | 150~200 | 220~240 | 300 | 360 | 480 |
| Ra | > 70 | ||||||
| Beam angle | Type II | ||||||

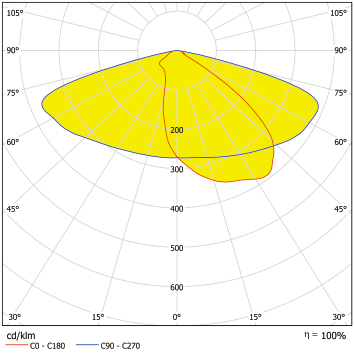

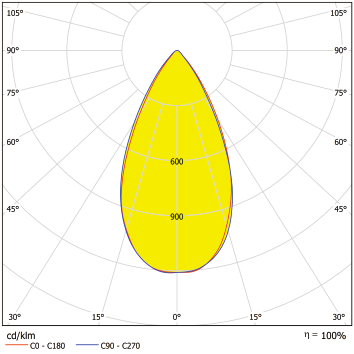

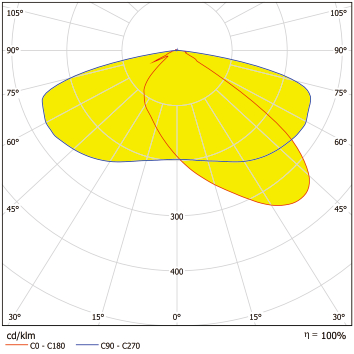

Light Distribution

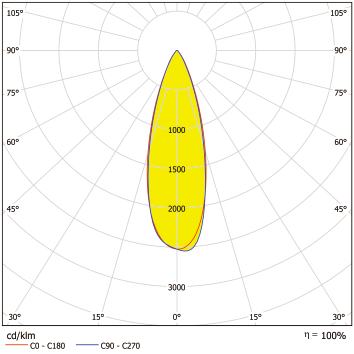

Type I(UNI-846)

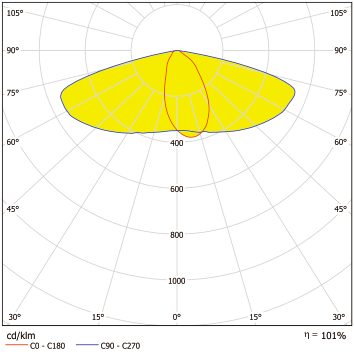

Type Ⅱ(UNI-595)
Type Ⅱ(UNI-908)

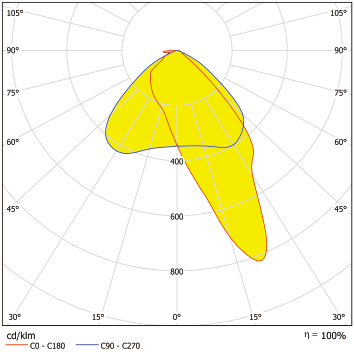

Type Ⅲ( UNI-596)
Type V( UNI-518)
Type V( UNI-750)
Dementions
| Product Model | UNI-PR05-1 | UNI-PR05-2 | UNI-PR05-3 | UNI-PR05-4 | UNI-PR05-5 | UNI-PR05-6 | UNI-PR05-8 |
| Rated Power (W) | 40~60 | 80~120 | 150~200 | 220~240 | 300 | 360 | 480 |
| Max casting area (m²) | 0.05 | 0.05 | 0.07 | 0.1 | 0.13 | 0.16 | 0.2 |
| Luminaire Dimension (mm) | 338×148×222 | 338×148×222 | 338×226×222 | 340×304×302 | 340×382×302 | 340×460×302 | 655×310×291 |
| Packing Dimension (mm) | 470×200×380 | 470×200×380 | 325×278×388 | 365×312×380 | 365×178×458 | 365×178×535 | 680×178×395 |
| Net Weight (kg) | 3.4±0.2 | 3.4±0.2 | 4.2±0.2 | 6.0±0.2 | 7.7±0.2 | 8.5±0.2 | 13.1±0.2 |
Las especificaciones del producto son solo de referencia y están sujetas a los documentos del contrato oficial.
Certifications
