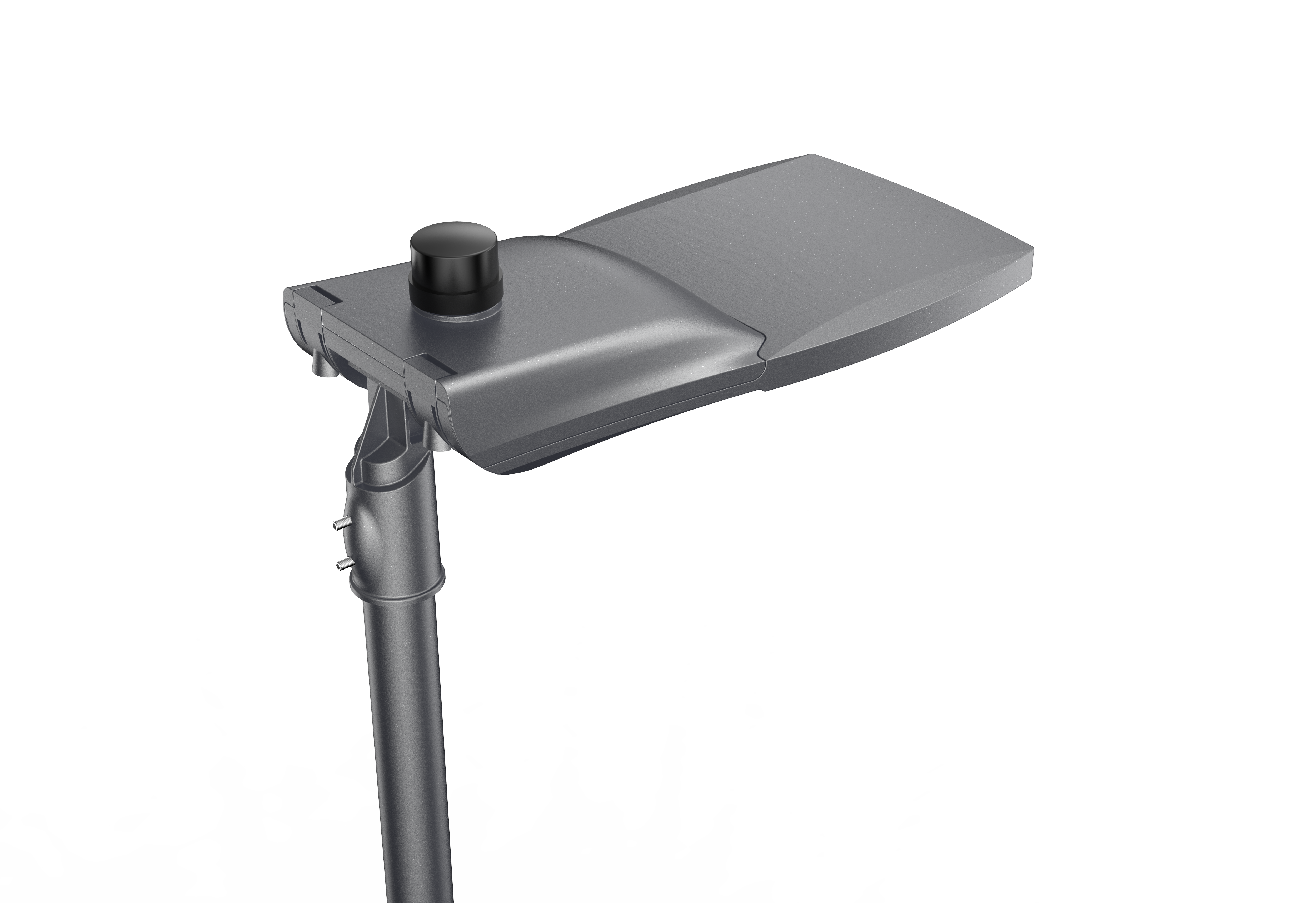

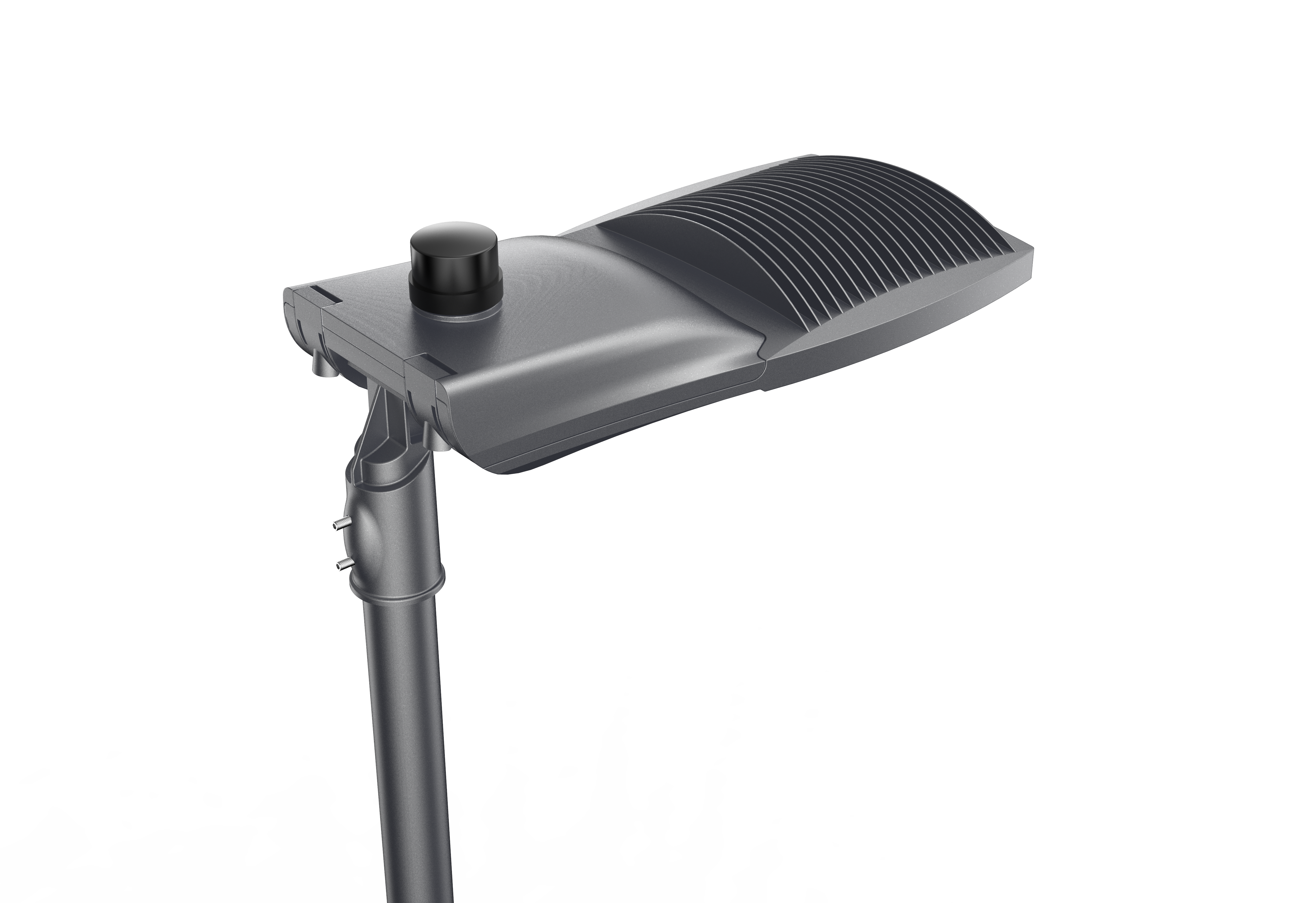

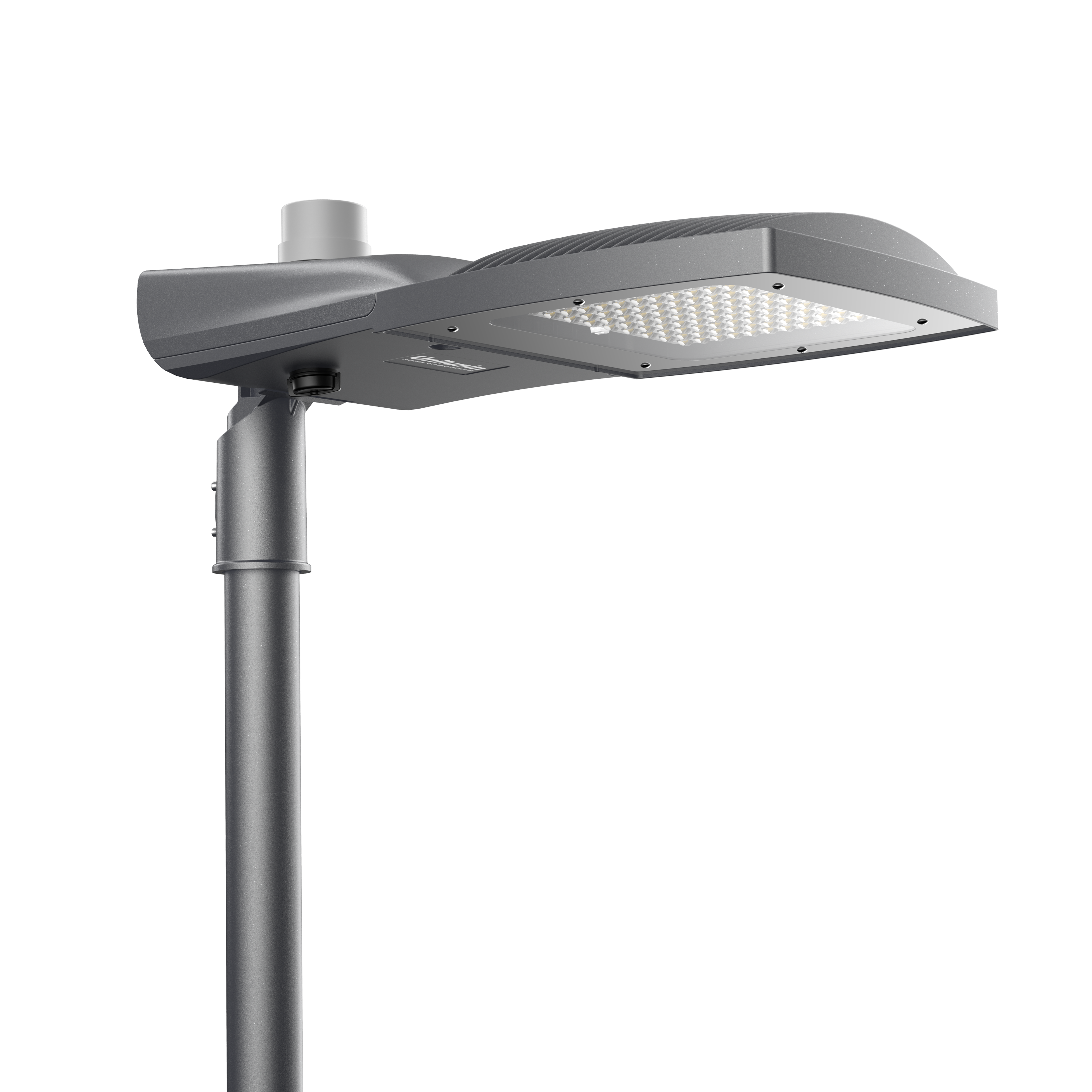

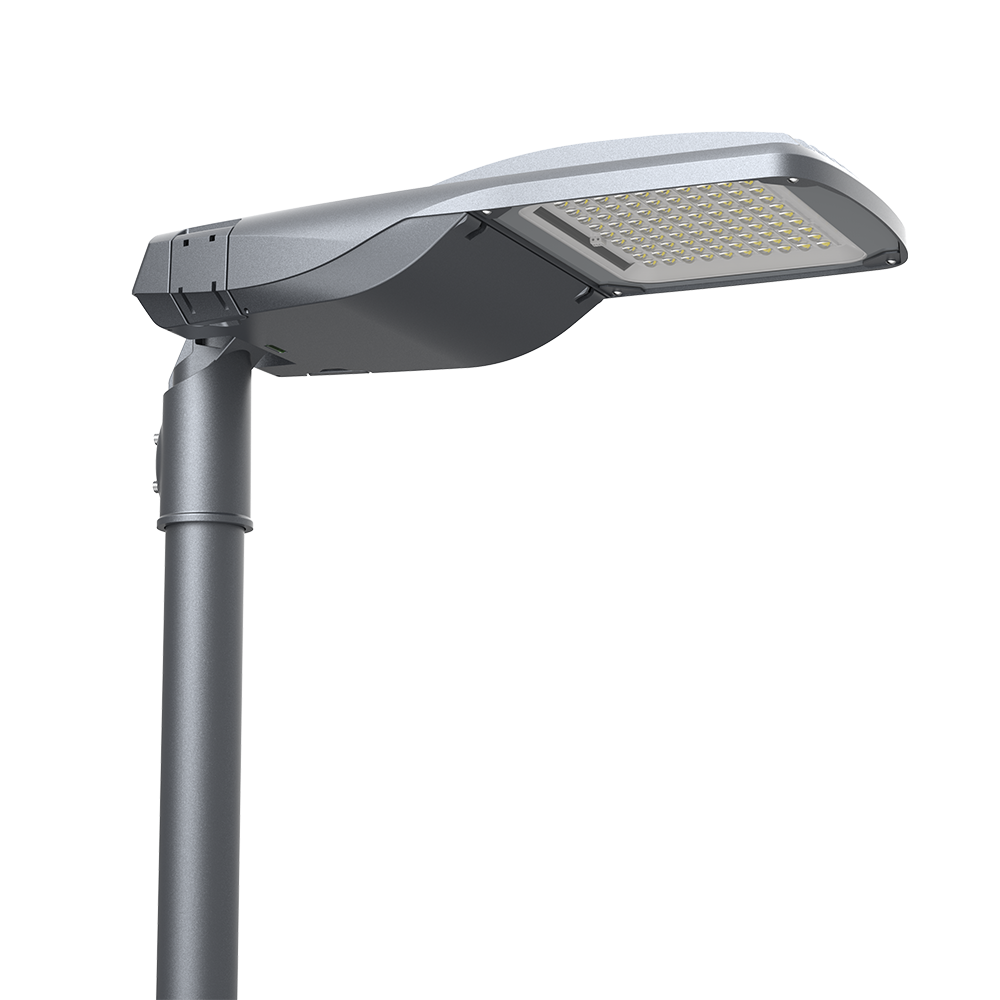

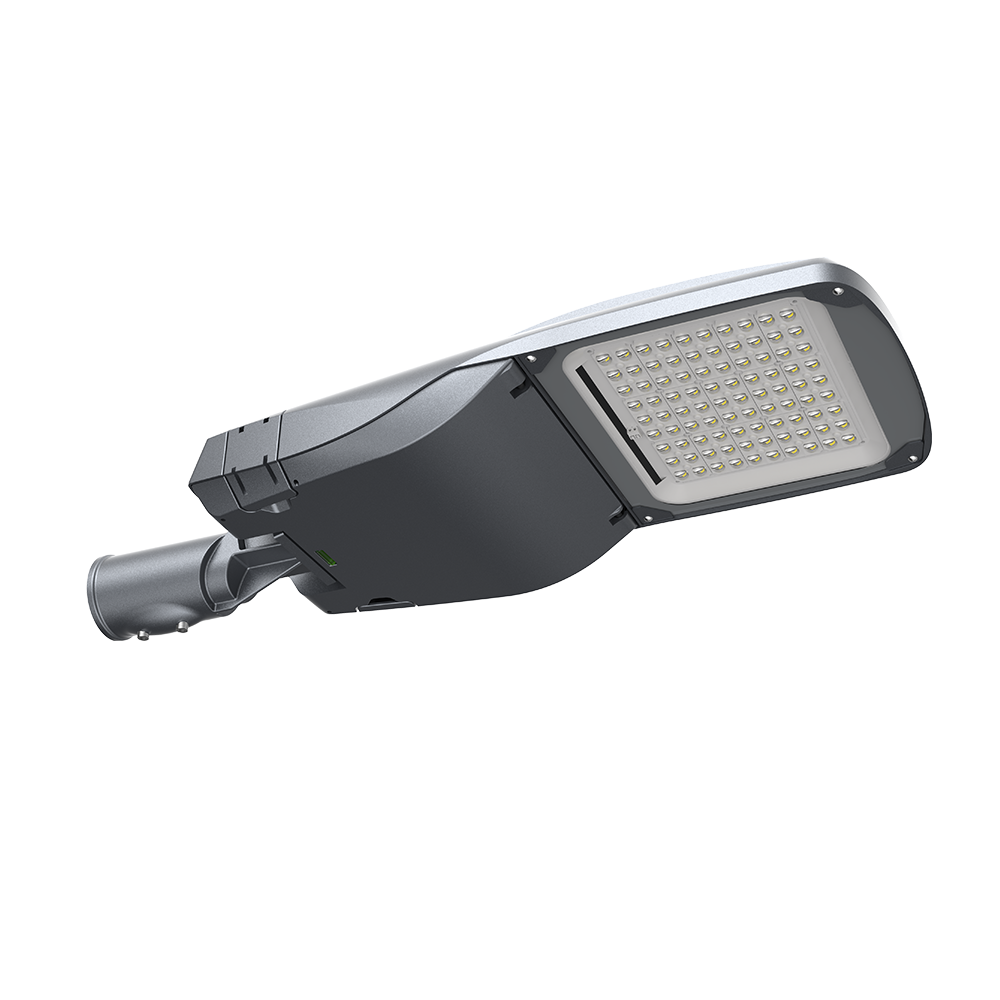

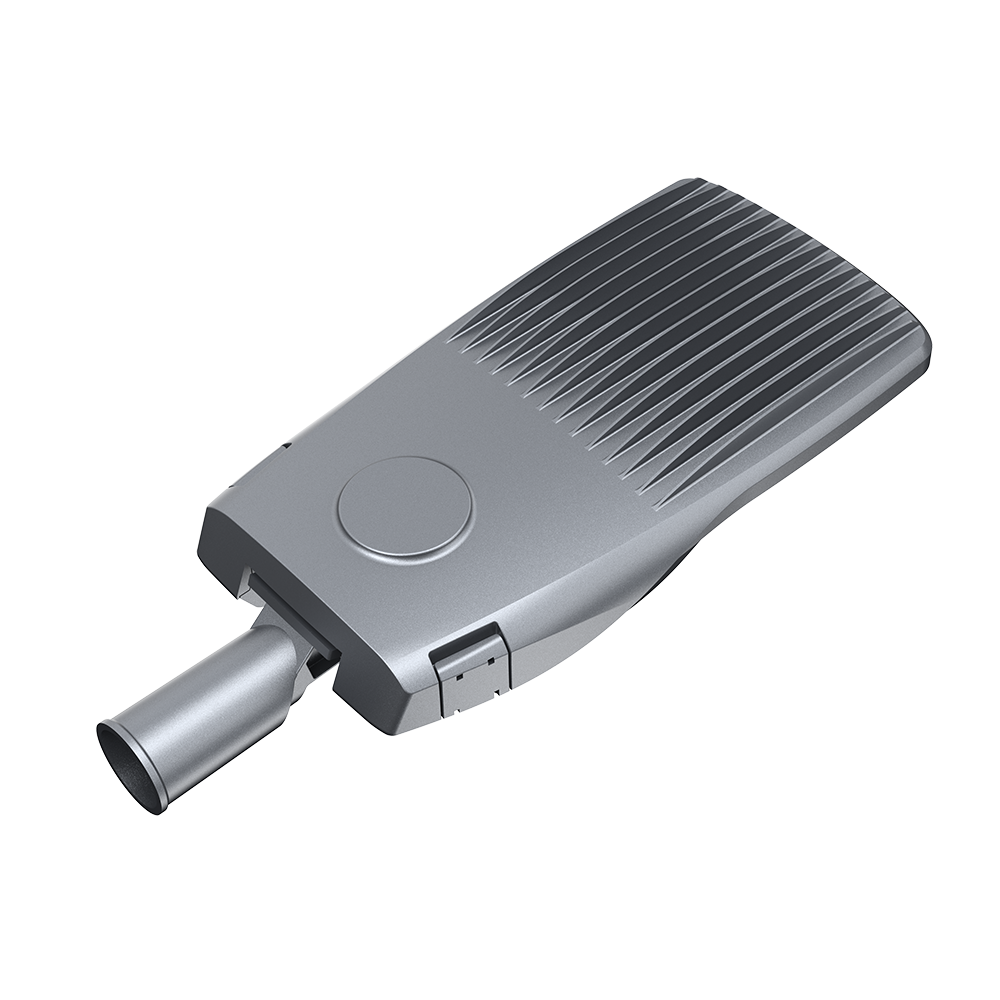

Marlin, an innovative LED street light, integrates die-casting aluminum for reliability and excellent thermal management. Redefining urban aesthetics with its detachable design, Marlin ensures easy maintenance and user safety. It caters to all your lighting needs with flexible installation options and various precise light distribution optics. More than just a luminaire, Marlin is an investment in a future where design, safety, and adaptability blend seamlessly.
Feature：

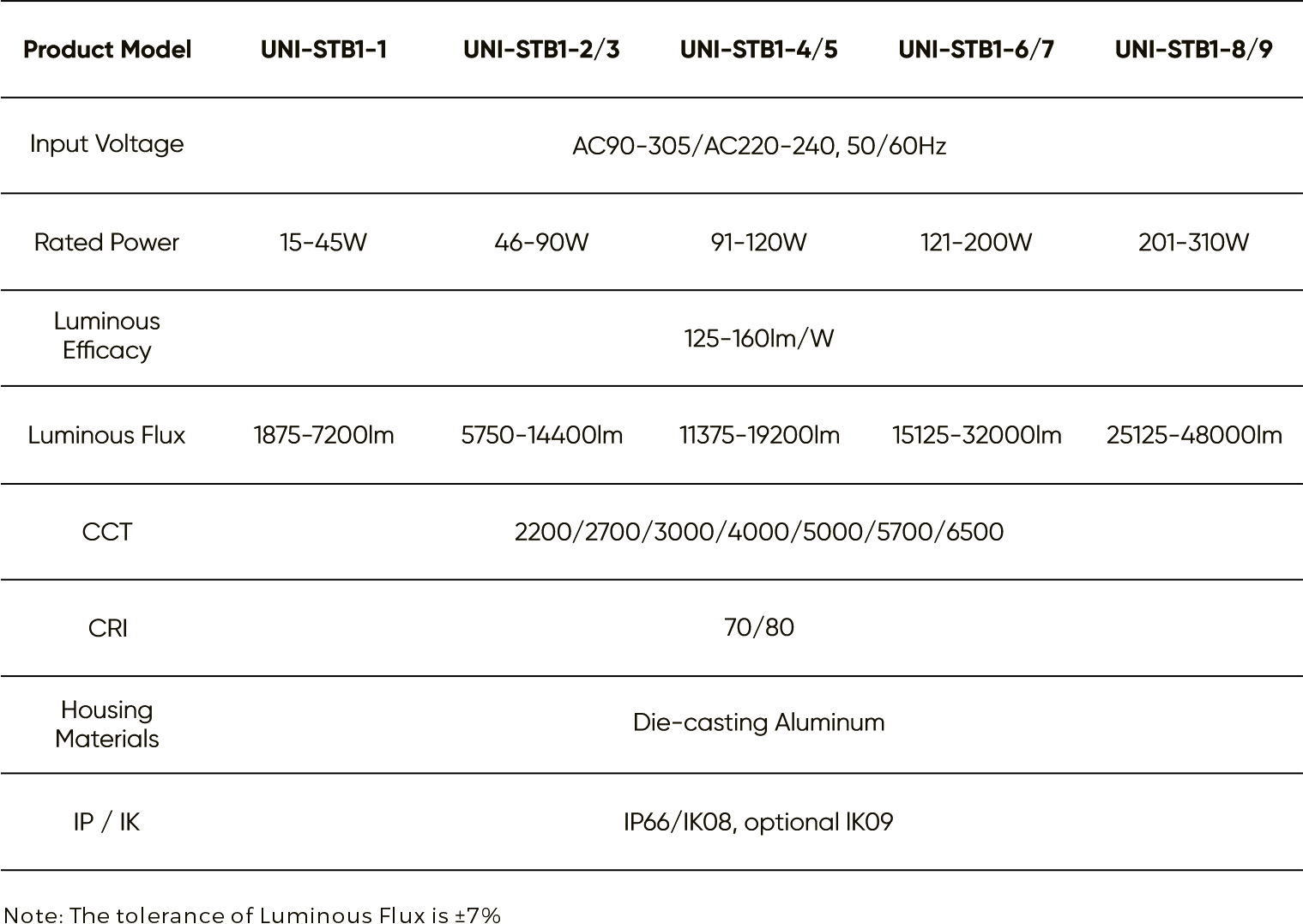

- Rated Power Range: 15W-150W.
- Rated Input Voltage: AC90-305V/AC220-240V,50/60Hz.
- Housing Material: Low copper content die-casting aluminum with toughened heat resistant glass.

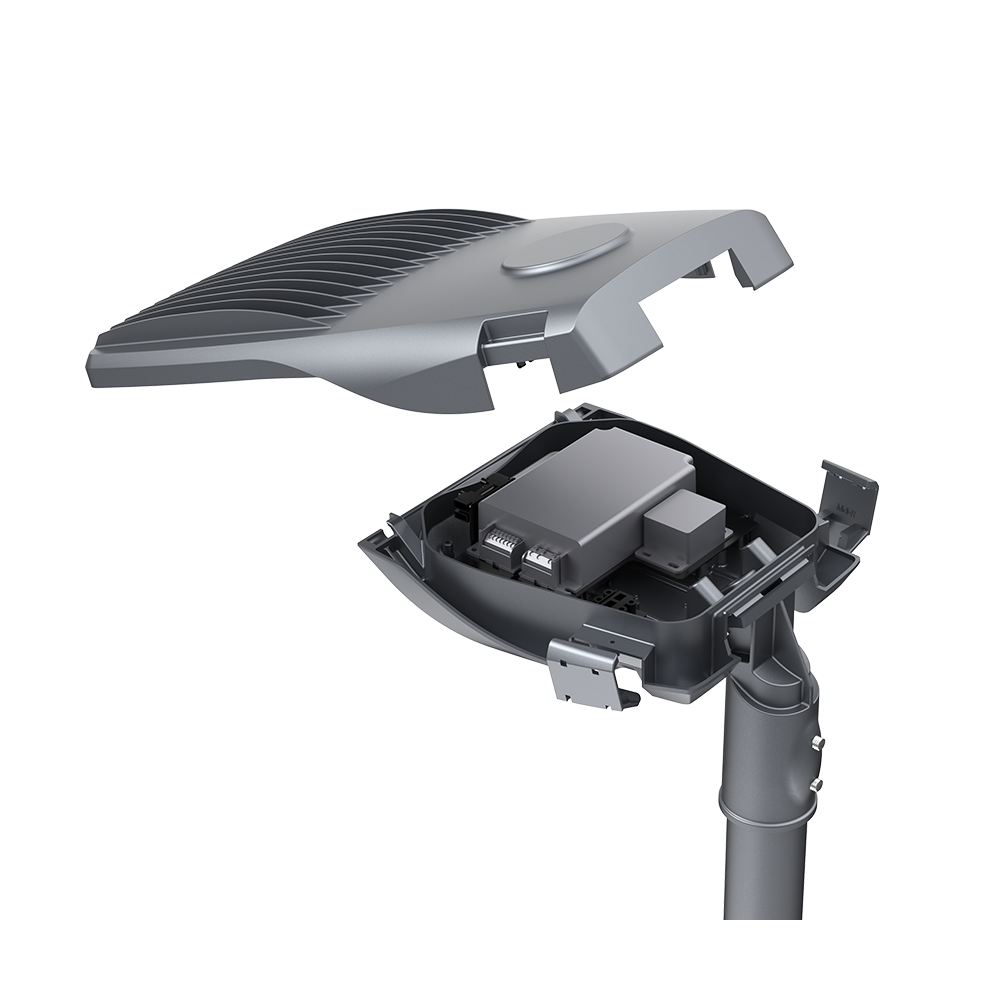

- Cutting-edge tool-free detachable design for accessing LED driver compartment for ease of maintenance.
- Protection Rating: IP66 as per IEC 60598-1, IK08 as per IEC 62262.
- Both side-entry and post top installation available.
- High brightness and efficient top-tier LEDs.
- CCT available in 2200K/2700K/3000K/4000K/5000K/5700K/6500K.
(Remark : Only 3000K and below CCT comply with DarkSky standard)
- On/Off or DALI 2 or 0-10V dimmable LED driver.DarkSky Approved luminaire with dimmable driver option
adjustable to ≤10% of maximum lumen output.
- Equipped with bubble level and knife switch to ensure product balanced and safer installation at site.
- Both NEMA and ZHAGA receptacle available for future smart cities integration.
- Built in external 10KV surge protection device, optional 20KV.

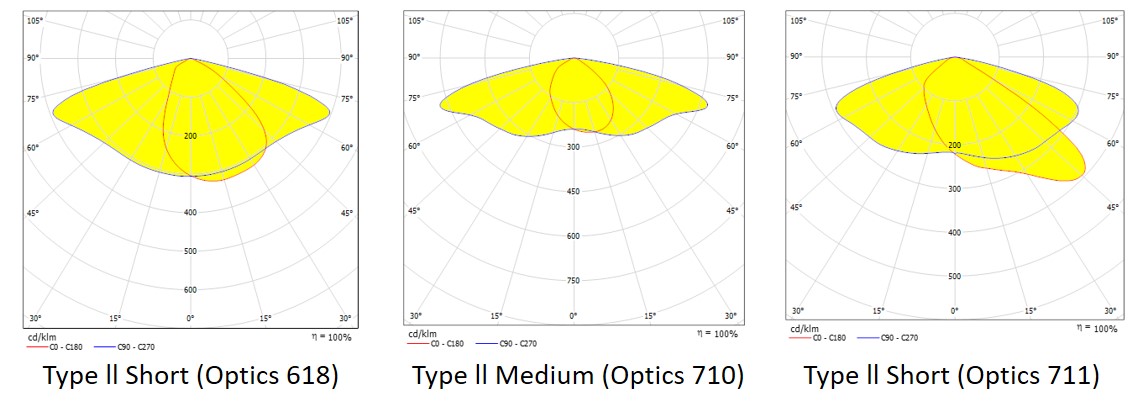

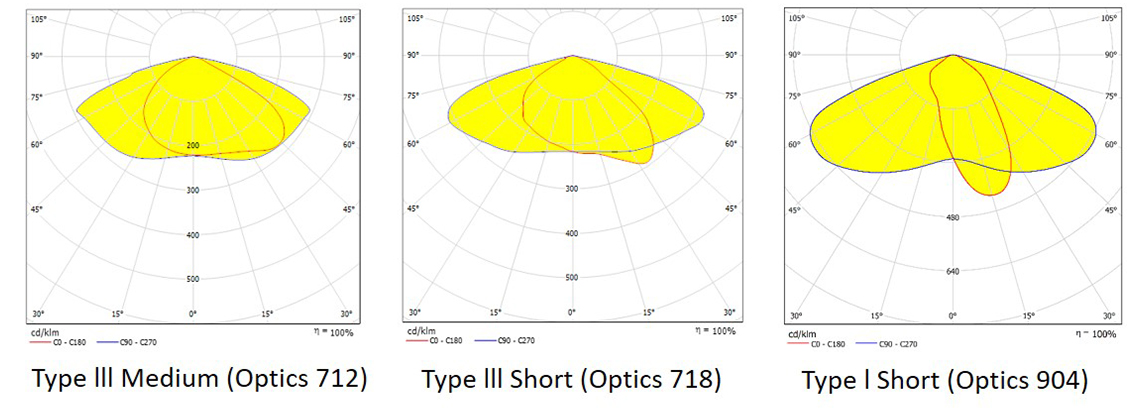

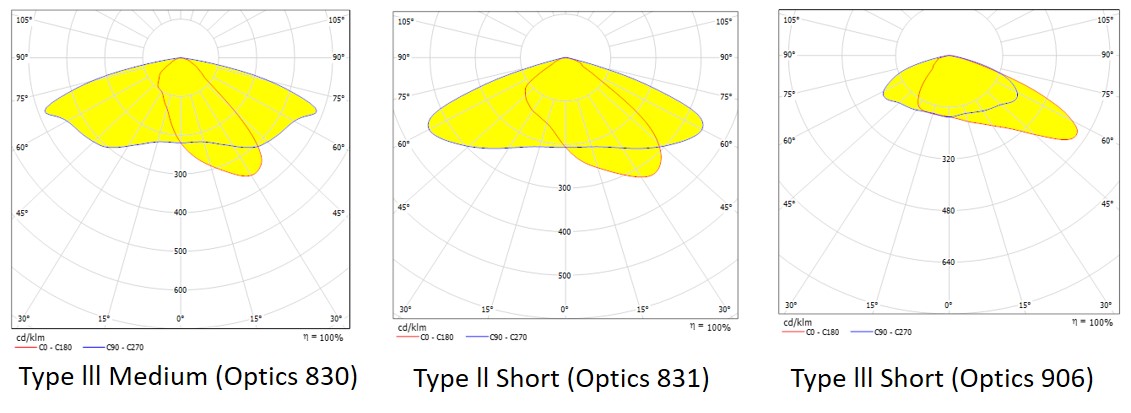

- Multiple light distribution (Full cut-off & Semi cut-off) curves for meeting different lighting applications.
- Solar lighting system compatible.
- Control mode: Photocontrol, Power line communication (NEMA), NB-IoT(NEMA), Zigbee(NEMA),LoRa(NEMA),Cat.1(NEMA&Zhaga).
- Pole Diameter: Standard Φ60 (Optional Φ42mm and Φ76mm).
- Operating environment : Operating temperature - 40℃ ~ 50℃, Operating humidity :10% ~ 95 %RH, Storage temperature - 40 ℃ ~ 55 ℃.
- Warranty : Standard 5 years, 7 to 10 years available upon request.
Applications: high way, city road, branch road, urban road, rural road, parking, etc. public areas.
