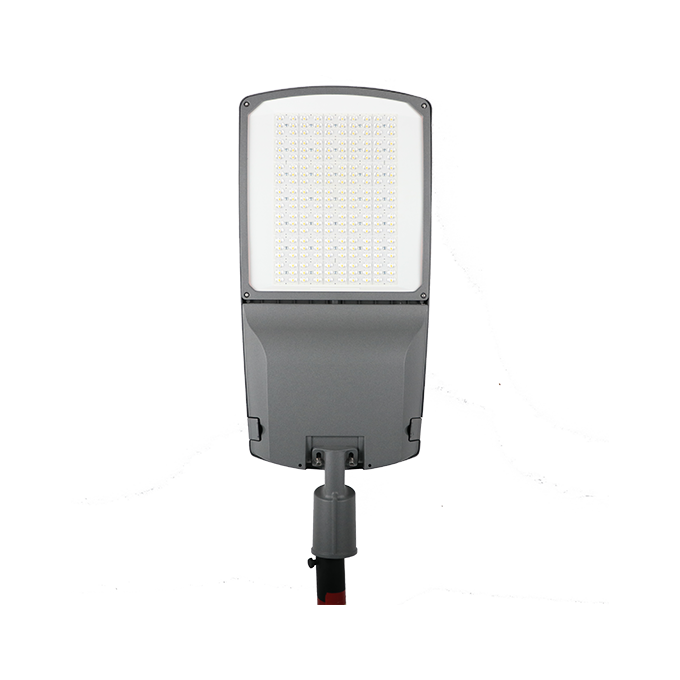

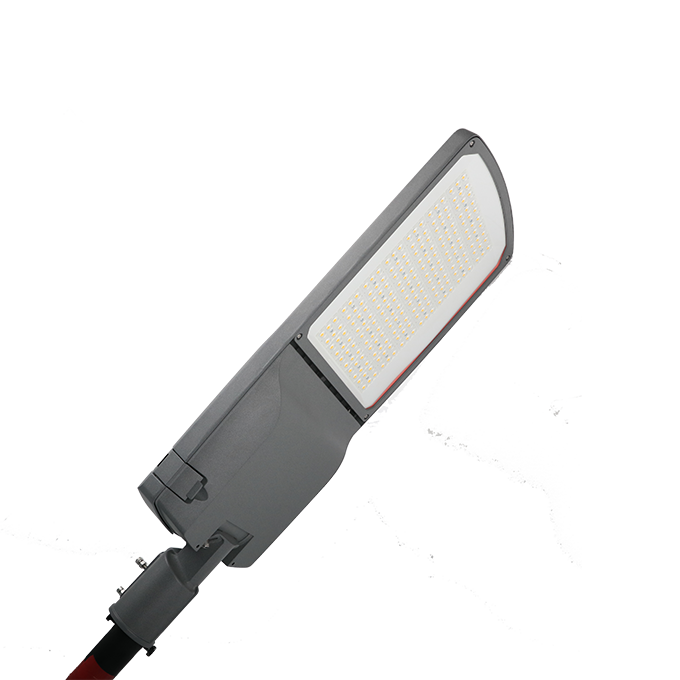

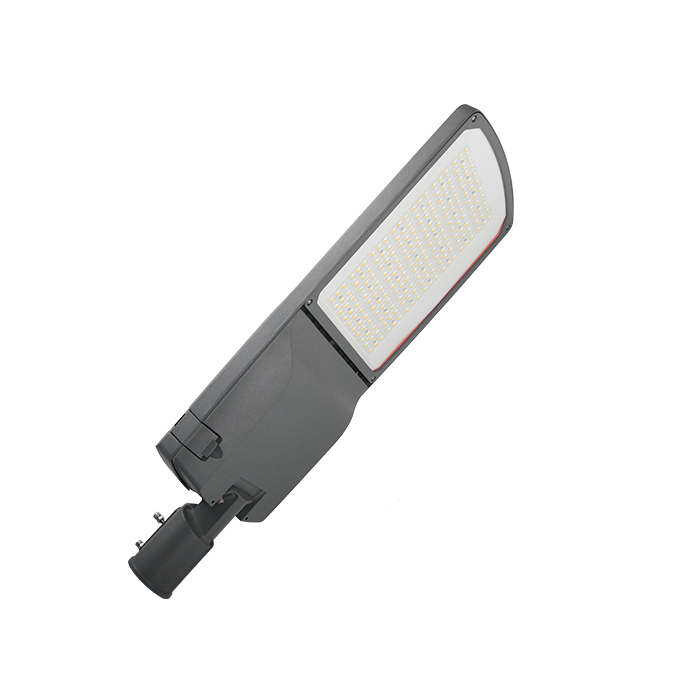

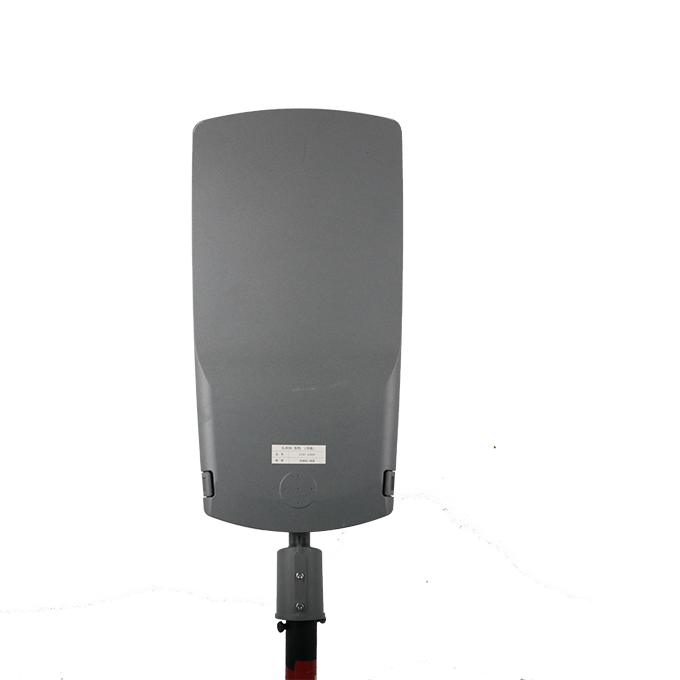

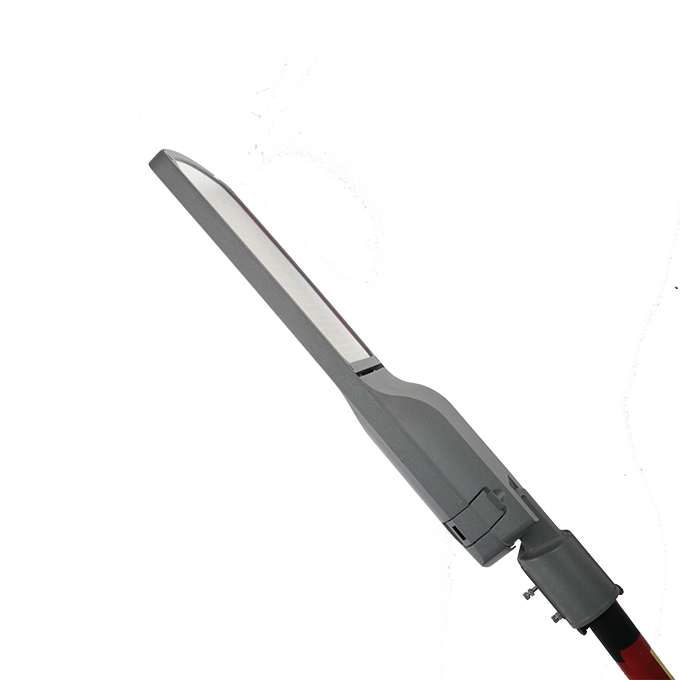

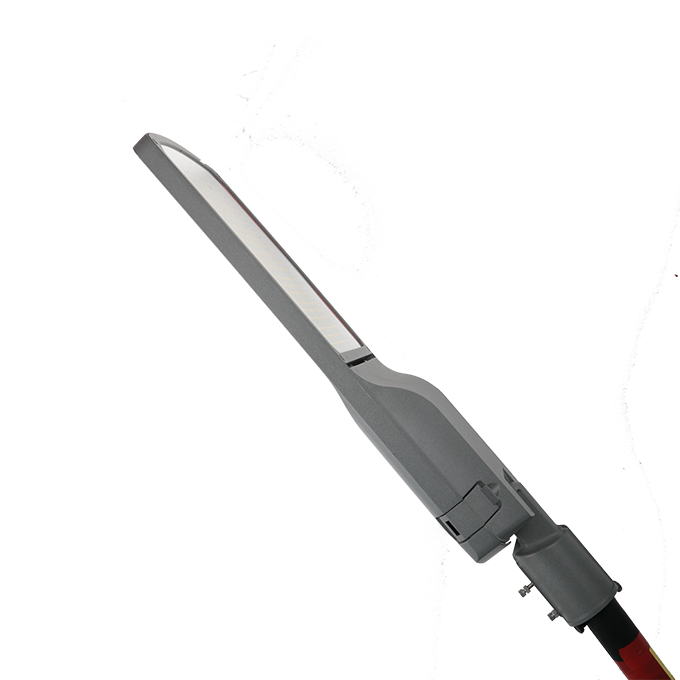

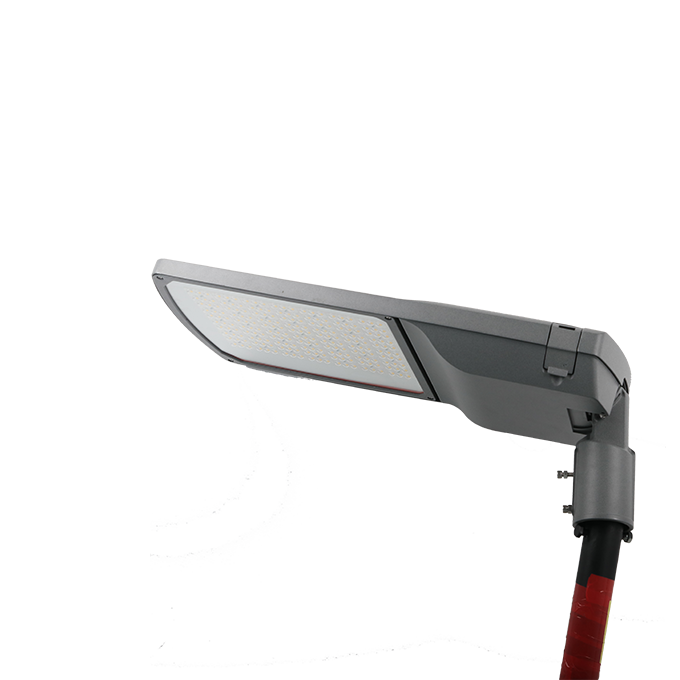

Manta+
Features
Trend-setting design
Integrated die-cast body with high structural strength, wind resistance up to Level 17
Optical-grade PMMA lens + ultra-clear tempered glass, no yellowing for 10 years
Maximum power: 350W, 20+ light distributions available
Wide voltage range: AC100–277V
Adjustable angle: +20° to -20°
Superior protection: IP66, up to IK10
Multiple interfaces: optional NEMA and ZHAGA
Application scenarios
Highways
Arterial
Secondary
Branch roads
Major vehicle lanes
Parameter
General info
Electrical
Optical
Light Distribution
Dementions
General info
| Product Model | UNI-STC3-6-350 |
| Power (W) | 350 |
| Luminous Flux （lm） | 56000 |
| Working Temp. | - 40 ℃ ～50 ℃ |
| Working Humidity | 10 % ～ 90 % RH |
| Storage Temp. | - 40 ℃ ～ 70 ℃ |
| Housing Materials | Die-casting aluminum |
| IP Grade | IP66 |
| IK Grade | IK08 |
| Life Span (Hrs) | 100,000（L70@Ta25°） |
Electrical
| Product Model | UNI-STC3-6-350 |
| Power (W) | 350 |
| Power Factor | ≥0.95 |
| Input Voltage | AC 100-277V 50/60Hz |
| Driver | Inventronics/Moso/Tridonic |
Optical
| Product Model | UNI-STC3-6-350 |
| Power (W) | 350 |
| LED | Osram/5050 |
| CCT（K） | 3000K/4000K/5000K/5700K/6500K |
| Luminaire Efficiency@4000K、Ta=25℃ (lm/W) | 160 |

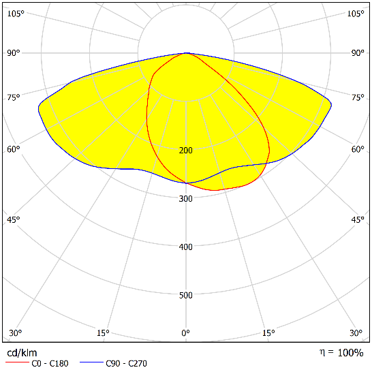

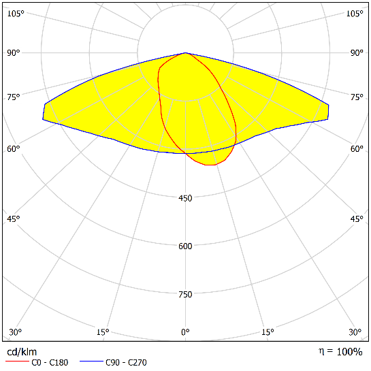

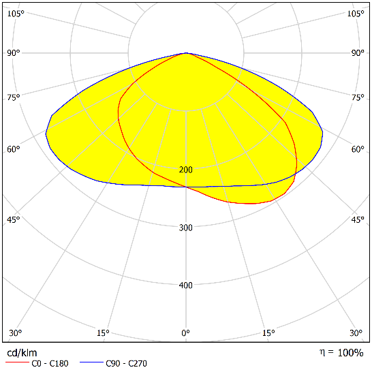

Light Distribution
T2S
T2M
T3S
Dementions
| Product Model | UNI-STC3-6-350 |
| Power (W) | 350 |
| Max Projected Area (㎡) | 0.32 |
| Product Dimension (mm) | 963×401×124 |
| Packing Dimension (mm) | 895×480×245 |
| Net Weight (kg) | 14.0±0.5 |
| Gross Weight (kg) | 15.5±0.5 |
Product specifications are for reference only and subject to the official contract documents.
