NOVA

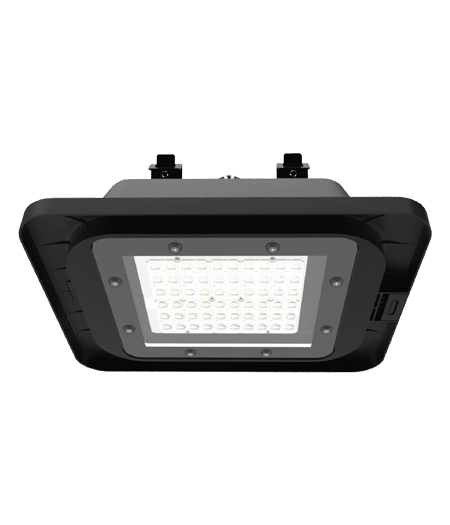

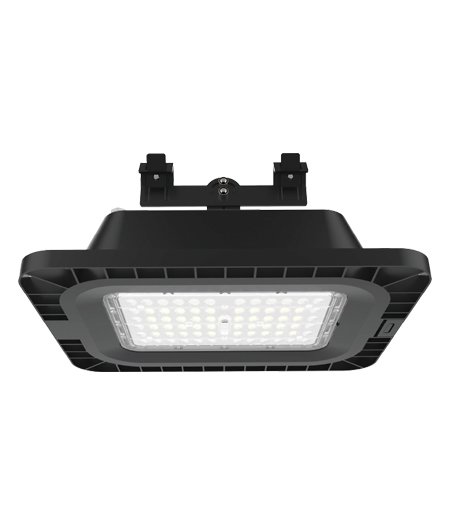

NOVA Catenary is a versatile LED lighting fixture which is a new addition to Unilumin’s road & street lighting product portfolio. It enables you to benefit from superior lighting quality, distinctive design and the advantages of smart lighting systems in applications requiring catenary solutions.



· Future-proof and smart ready with NEMA and Zhaga interfaces responding to smart city initiative

· High luminous efficacy up to 150lm/w for saving energy

· Dedicated optics for both Symmetrical or asymmetrical light distributions

· PC optics and tempered glass optional

· Tool-free access to driver compartment for easy and quick maintenance

· Maximized savings in energy and maintenance costs

· Die-casting aluminum housing, robust and durable

· ±60°adjustable mounting bracket

· Optimized thermal design for longer life time

· Elegant design for public lighting solutions

· Surface mounting is optional



Applications: Downtown Street, Square, Residential Street, Traffic Routes, industries etc.


Parameters

Structure

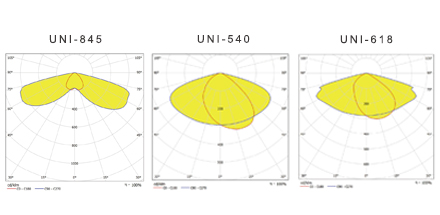

Light Distribution

Specs Sheet




PARAMETERS

Model

PC Range

Glass Range

Input Voltage

100-277V

Power Factor

0.95

Rated Power

15-100W

20-100W

Luminaire Efficiency

117-155 lm/W

Luminous Flux

2250-15500 lm

Color Temperature

3000±300 K /4000±300 K /5000±300 K /5700±500 K/6500±500 K

Insulation Class

Class I/Class II(optional)

Working Temperature

-40°C~+45°C

Working Humidity

10%~90% RH

Storage Temperature

-40°C ~+55°C

Housing Material

Die-casting aluminum

Luminaire

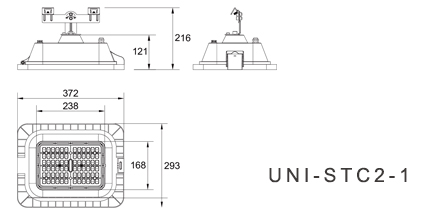

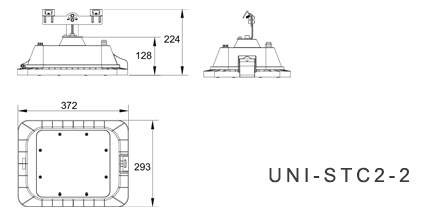

Dimension(mm

372x293x216

372x293x224

IP Rating

IP66/IK08

Certifications

CE/CB/ENEC
